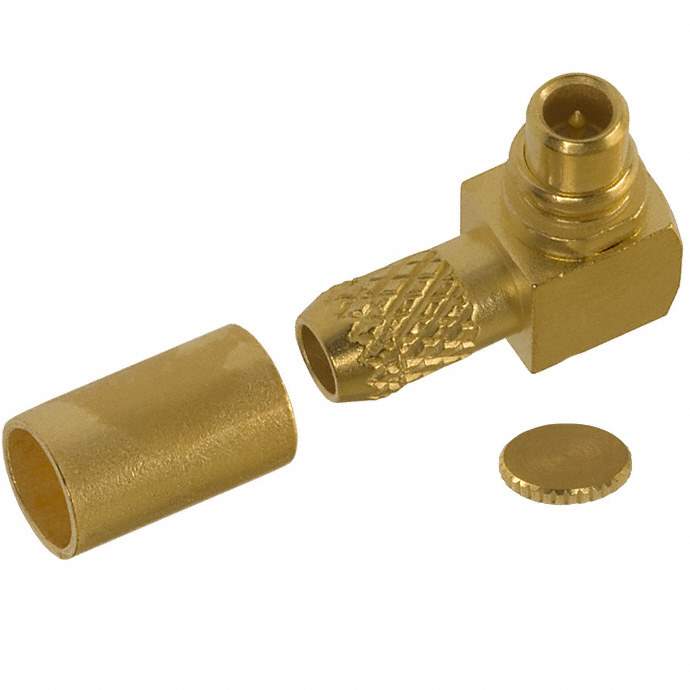

135-3403-101 Real Image
Same model may have multiple batches, images only for reference.

135-3403-101

Part No 135-3403-101
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX PLUG R/A 50 OHM SOLDER / MMCX Connector Plug, Male Pin 50Ohm Free Hanging (In-Line), Right Angle Solder
Datasheet
135-3403-101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style MMCX
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Free Hanging (In-Line), Right Angle
Cable Group RG-161, 174, 179, 187, 188, 316
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Sleeve
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 170 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 135-3403
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number J594,1353403101
Standard Package 25
Win Source Part Number 1331958-135-3403-101
Ultra Librarian 3D Model Ultra Librarian 135-3403-101 CAD Model

Description

The Cinch Connectivity Solutions Johnson 1331958-135-3403-101 is a snap-on male pin plug connector with a solder contact termination.

  • Style: MMCX
  • Voltage Rating: 170 V
  • Shield Termination: Crimp
  • Impedance: 50Ohm
  • Material: Brass
  • Body Finish: Gold
  • Insertion Loss: 0.2dB
  • Cable Groups: RG-161, 174, 179, 187, 188, 316
  • Package: 25
  • Mounting: Free hanging (in-line) or right angle styles
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 155°C
  • Mating Cycle: 500
  • Pieces: 3 - 1 connector, 1 end cap, and 1 sleeve
