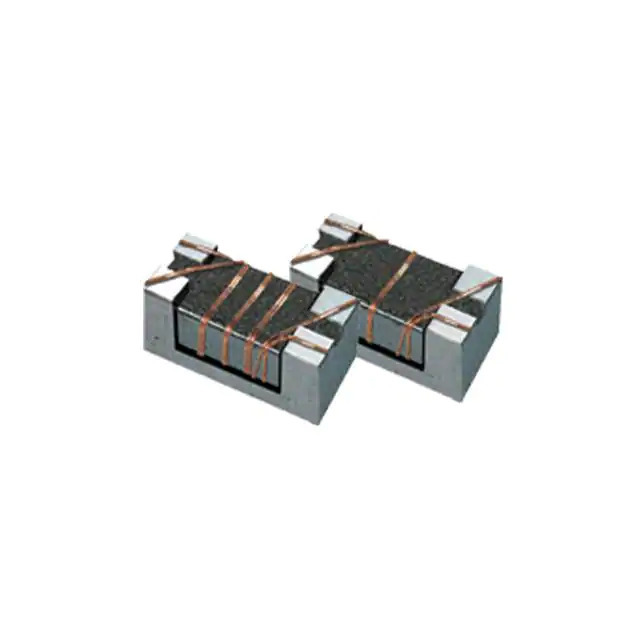

BWCU00201212201M02 Chilisin
Same model may have multiple batches, images only for reference.

BWCU00201212201M02

Part No BWCU00201212201M02
Manufacturer Chilisin
Catalog Common Mode Chokes
Description CMC 330MA 2LN 200 OHM SMD
Datasheet
BWCU00201212201M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Chilisin Electronics
Series BWCU_02
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohms @ 100 MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 105°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369357-BWCU00201212201M02
Ultra Librarian 3D Model Ultra Librarian BWCU00201212201M02 CAD Model

Description

The BWCU_02 is a common mode choke filter in the BWCU series from Chilisin Electronics.

  • Filter Type: Common Mode
  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Size / Dimension: 0.081" L x 0.049" W (2.05mm x 1.25mm)
  • Voltage - Rated: 50V
  • Current Rating: 330mA
  • Impedance @ Frequency: 200 Ohms @ 100 MHz
  • DC Resistance (DCR) (Max): 350mOhm
  • Operating Temperature: -40°C ~ 105°C
