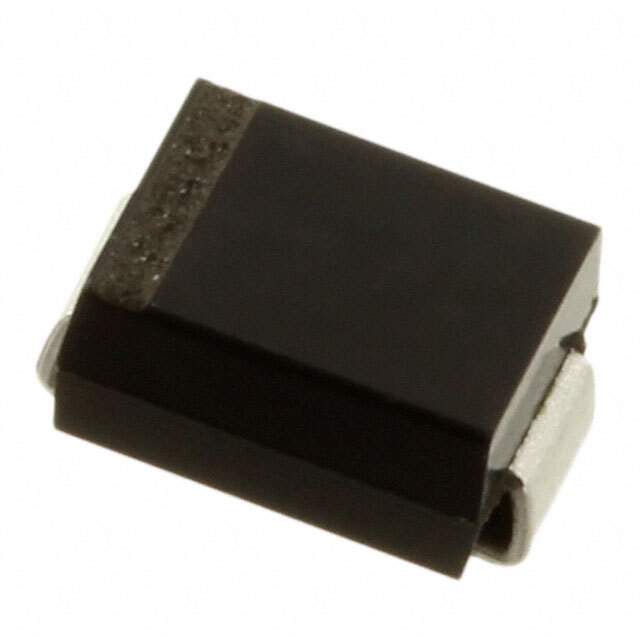

CMSH1-20 TR13 PBFREE

Name: CMSH1-20 TR13 PBFREE
Brand: Central Semiconductor Corp
SKU: 1052728
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CMSH1-20 TR13 PBFREE
Manufacturer	Central Semiconductor Corp
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 20V 1A SMB / Diode Schottky 20 V 1A Surface Mount SMB
Datasheet	CMSH1-20 TR13 PBFREE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Central Semiconductor Corp
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	550 mV @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 µA @ 20 V
Capacitance @ Vr, F	110pF @ 4V, 1MHz
Mounting	SMD (SMT)
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 150°C
Base Product Number	CMSH1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	-1583-CMSH1-20TR13PBFREEDKR,-CMSH1-20CT,-CMSH1-20DKR,-CMSH1-20 TR13,CMSH1-20 CT-ND,CMSH1-20 DKR,CMSH1-20 TR,CMSH1-20 DKR-ND,-1583-CMSH1-20TR13PBFREECT,CMSH1-20DKR,BYG90-20,CMSH1-20DKR-ND,CMSH1-20 TR-ND,-CMSH1-20DKR-ND,-CMSH1-20 TR13-CT-ND,-CMSH1-20CT-ND,-CMSH1-20 DKR-ND,-CMSH1-20 CT-ND,CMSH1-20TR,1514-CMSH1-20TR13PBFREETR,CMSH1-20 TR13 LEAD FREE,CMSH1-20 CT,-CMSH1-20 TR13-DKR,CMSH1-20CT,CMSH1-20CT-ND,1514-CMSH1-20TR13PBFREEDKR,CMSH1-20TR-ND,CMSH1-20 TR13,-CMSH1-20 TR13-DKR-ND,1514-CMSH1-20TR13PBFREECT,-CMSH1-20 TR13 PBFREE,-CMSH1-20 TR13-ND
Standard Package	3,000
Win Source Part Number	1052728-CMSH1-20 TR13 PBFREE
Ultra Librarian 3D Model	Ultra Librarian CMSH1-20 TR13 PBFREE CAD Model

Alternative Products

Description

The CMSH1-20 TR13 PBFREE electronic component is an OEM part and is manufactured by Central Semiconductor Corp.

Category: discrete semiconductor product, diodes - rectifiers - single
RoHS Compliant: Yes
Voltage - DC Reverse (Vr) (Max): 20 V
Current - Average Rectified (Io): 1A
Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
Capacitance @ Vr, F: 110pF @ 4V, 1MHz
