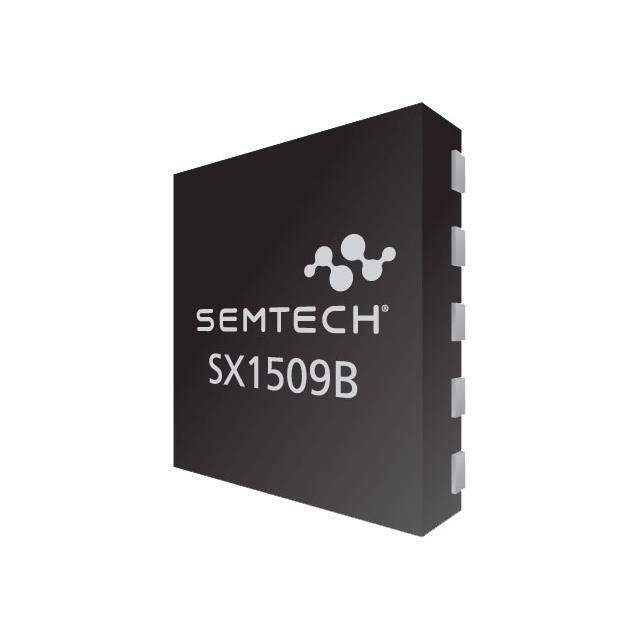

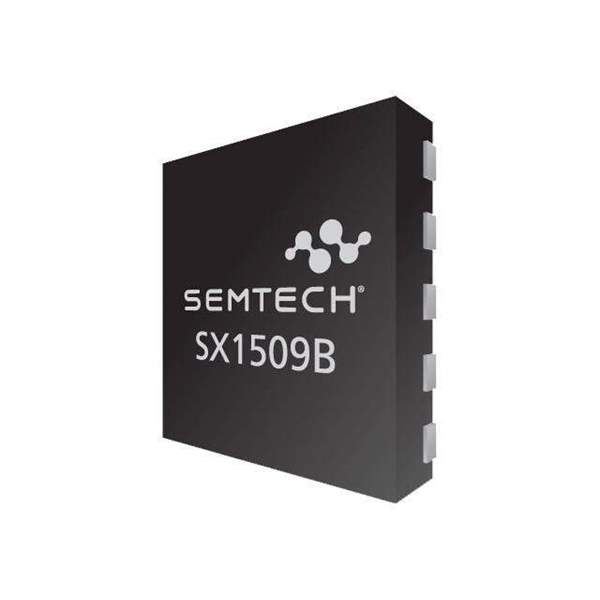

SX1509QBIULTRT Real Image
Same model may have multiple batches, images only for reference.

SX1509QBIULTRT

Part No SX1509QBIULTRT
Manufacturer Semtech Corporation
Catalog Interface - I/O Expanders
Description World’s Lowest Voltage Level Shifting GPIO with LED Driver and Keypad Engine
Datasheet
SX1509QBIULTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Semtech Corporation
Packaging Reel - TR
Number of I/O 16
Interface I2C
Interrupt Output Yes
Features Keypad Controller, LED Output, POR
Output Type Open Drain, Push-Pull
Current - Output Source/Sink 8mA, 15mA
Clock Frequency 400kHz
Operating Supply Voltage 1.425 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 28-UFQFN Exposed Pad
Manufacturer Package 28-QFN-UT (4x4)
Win Source Part Number 1262754-SX1509QBIULTRT
Manufacturer Homepage www.semtech.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name SX1509QB
Introduction Date August 02, 2010
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SX1509QBIULTRT CAD Model

Description

The Semtech SX1509QBIULTRT is a keypad controller and LED output with POR features.

  • Package: 28-UFQFN Exposed Pad
  • Output Type: Open Drain and Push-Pull
  • Operating Supply Voltage: 1.425 V ~ 3.6 V
  • Interface: I2C
  • I/O: 16
  • Current Output Source/Sink: 8mA, 15mA
  • Interrupt Output: Yes
  • Clock Frequency: 400kHz
