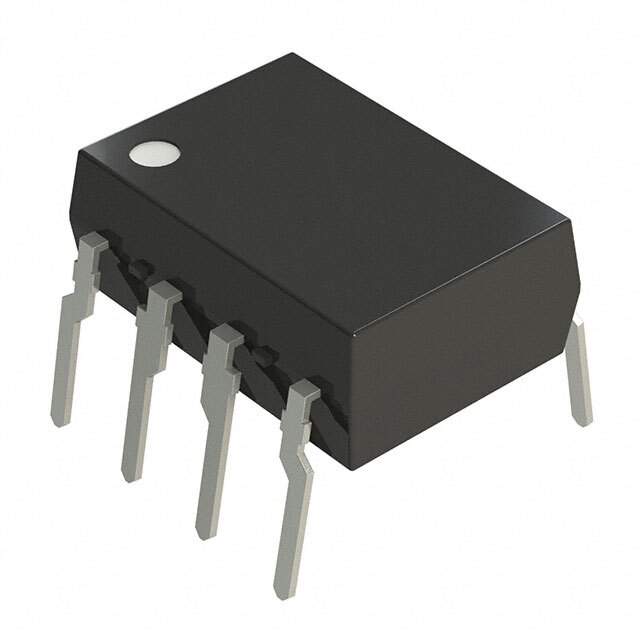

PS9601 Real Image
Same model may have multiple batches, images only for reference.

PS9601

Part No PS9601
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN DRAIN 8DIP
Datasheet
PS9601 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 131673-PS9601
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS9601 CAD Model

Description

The PS9601 is a through-hole open collector optocoupler manufactured by CEL.

  • Product: PS9601
  • Manufacturer: CEL
  • Mounting Type: through-hole
  • Output Type: open collector
  • Propagation Delay tpLH / tpHL: 75ns and 75ns
  • Isolation Voltage: 5000Vrms
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 30mA
  • Operating Temperature Range: -40°C to 85°C
  • Package: 8-DIP
