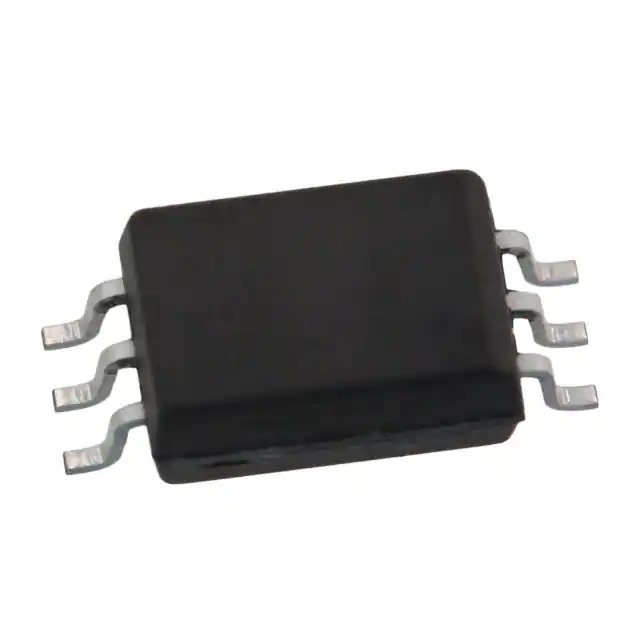

Same model may have multiple batches, images only for reference.
ACPL-W60L-000E Broadcom Limited
Same model may have multiple batches, images only for reference.

ACPL-W60L-000E

Part No ACPL-W60L-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPN COLL 6SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Broadcom Limited
Series -
Package Tube
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 50 mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 24ns, 10ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 2.7V ~ 3.6V, 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SO
Base Product Number ACPL-W60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1371596-ACPL-W60L-000E
Ultra Librarian 3D Model Ultra Librarian ACPL-W60L-000E CAD Model

Description

The ACPL-W60L-000E is a logic output optoisolator from Broadcom Limited.

  • Application: Isolators
  • Operating Temperature: -40°C to 100°C
  • Package: 6-SOIC
  • Base Product Number: ACPL-W60
  • Output Type: Open Collector, Schottky Clamped
  • Forward Voltage: 1.5V
  • Data Rate: 15MBd
  • Current Output: 50mA per channel
  • Voltage Isolation: 5000Vrms
  • Rise Time: 24ns
  • Fall Time: 10ns
  • Supply Voltage: 2.7V to 3.6V and 4.5V to 5.5V
