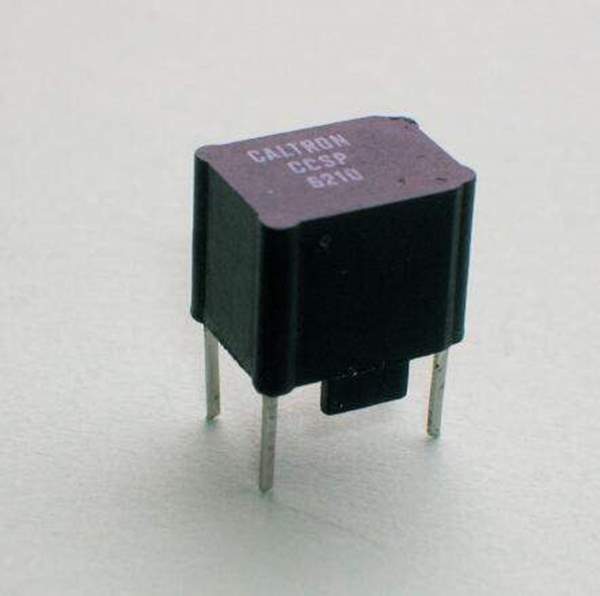

CCSP-C220-0107
Same model may have multiple batches, images only for reference.

CCSP-C220-0107

Part No CCSP-C220-0107
Manufacturer Caltron
Catalog Inductors, Coils, Chokes
Description compensated choke component
Datasheet
CCSP-C220-0107 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305933-CCSP-C220-0107
Manufacturer Caltron
Category compensated choke component
Package SMD
Test Voltage U= 1800 / 2 sec.
Power Dissipation 750mW
Resistance (Ohms) 2 x 260 ± 10% mÙ
Inductance 2 x 6.8 - 30% + 50% mH
Current 1.2 A
Ultra Librarian 3D Model Ultra Librarian CCSP-C220-0107 CAD Model

Description

CCSP-C220-0107 is a compensated choke component manufactured by Caltron. It is part of their product line designed for various technical applications.
