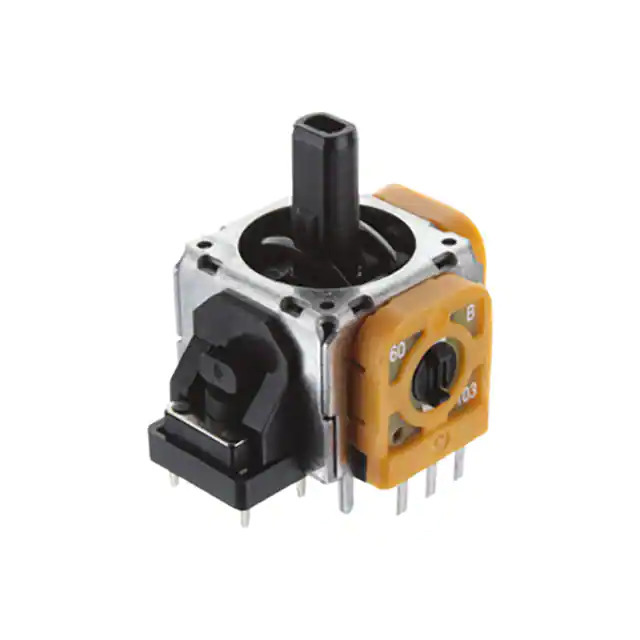

THB001P C&K Components
Same model may have multiple batches, images only for reference.

THB001P

Part No THB001P
Manufacturer C&K Components
Catalog Navigation Switches, Joystick
Description THUMBSTICK DUAL AXIS W/MOM PB
Datasheet
THB001P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Navigation Switches, Joystick
Mfr C&K
Series THB
Package Tray
Product Status Active
Type Joystick, 2 - Axis
Actuator Type Joystick
Switch Function 360° Directional, Center Select
Functions, Extra -
Output Analog (Resistive)
Voltage - Supply -
Current Rating (Amps) -
Voltage Rating - AC 50 V
Voltage Rating - DC 5 V
Contact Material -
Contact Finish -
Resistance 10 kOhms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -10°C ~ 70°C
Panel Cutout Dimensions -
Ingress Protection -
Features Center Tap
Mechanical Life -
Electrical Life 1,000,000 Cycles
Operating Force 160gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376340-THB001P
Ultra Librarian 3D Model Ultra Librarian THB001P CAD Model

Description

The THB001P is a 2-axis joystick from C&K's THB series.

  • Mounting Type: Through-hole
  • Package: Tray
  • Temperature Range: -10°C to 70°C
  • Voltage Rating (DC): 5V
  • Directional Movement: 360°
  • Function: Center Select
  • Output: Analog (resistive)
  • Resistance: 10 kOhms
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 160gf
