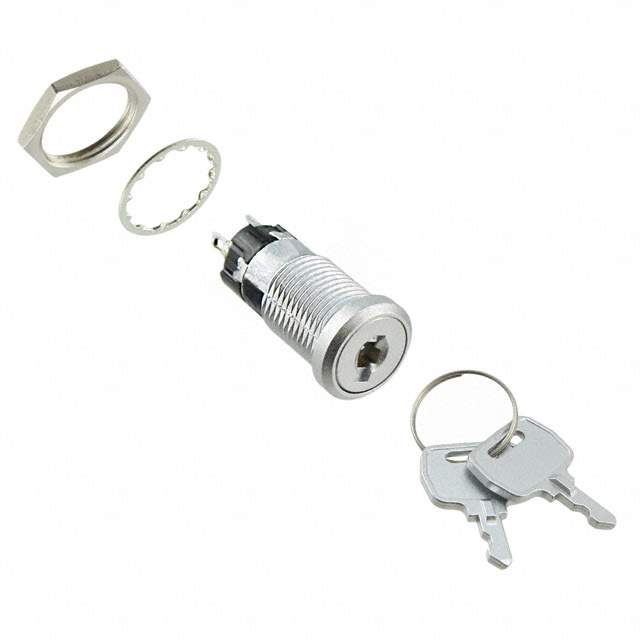

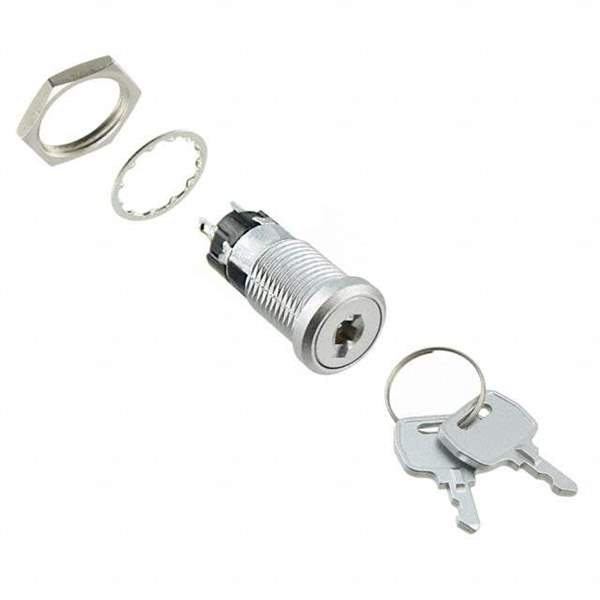

SK12BAW01 Real Image
Same model may have multiple batches, images only for reference.

SK12BAW01

Part No SK12BAW01
Manufacturer NKK Switches
Catalog Navigation Switches, Joystick
Description SWITCH KEYLOCK 2POS SPDT 3A 125V
Datasheet
SK12BAW01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Status Active
Circuit SPDT
Number of Positions 2
Switch Function On-On
Contact Timing Non-Shorting (BBM)
Current Rating 3A (AC)
Voltage Rating - AC 125V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 90°
Mounting Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.00mm Dia
Features Epoxy Sealed Terminals
Depth Behind Flange 27.00mm
Temperature Range - Operating -25°C to 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Win Source Part Number 097683-SK12BAW01
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian SK12BAW01 CAD Model

Description

The NKK Switches SPDT On-On Switch is a reliable switch that is perfect for industrial applications.

  • Positions: 2
  • Termination Style: Solder Lug
  • Terminals: Epoxy Sealed
  • Contact Finish: Gold
  • Current Rating: 3A (AC)
  • Voltage Rating: 125V (AC)
  • Mounting Style: Panel Mount
  • Panel Cutout Dimension: Circular - 12.00mm Dia.
  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Actuator Type: Flat Key
  • Angle of Throw: 90°
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 30,000 Cycles
  • Depth Behind Flange: 27.00mm
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Manufacturer: NKK Switches
