Same model may have multiple batches, images only for reference.

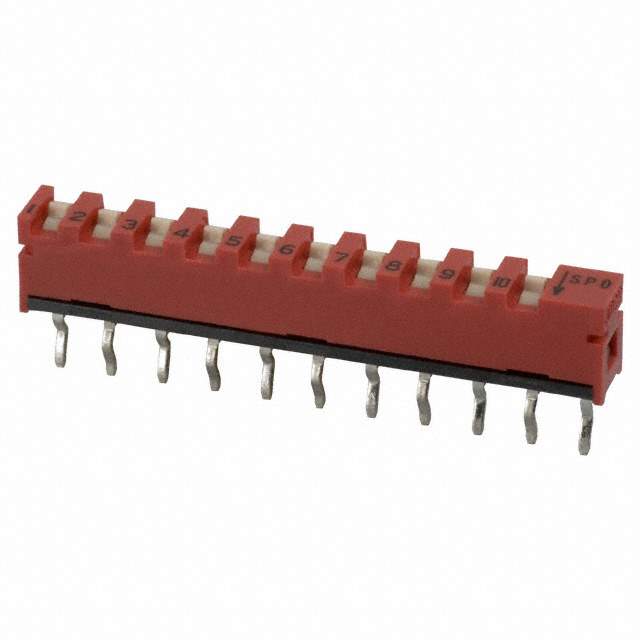

SP10B Real Image
Same model may have multiple batches, images only for reference.

SP10B

Part No SP10B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 10mA 20VDC
Datasheet
SP10B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 10
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.196" (4.99mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.098" (27.89mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN9148,*SP10B
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233699-SP10B
Ultra Librarian 3D Model Ultra Librarian SP10B CAD Model

Description

The SP series DIP switch from C&K is a through-hole mounting device with a pitch of 2.54mm.

  • Manufacturer: C&K
  • Mounting: Through-hole
  • Pitch: 2.54mm
  • Circuit: SPST
  • Number of Positions: 10
  • Actuator Type: Slide
  • Actuator Level: Flush, recessed
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Height Above Board: 4.99mm
  • Length: 27.89mm
  • Operating Temperature: -20°C to 85°C
  • RoHS: Compliant
  • REACH: Unaffected
  • Package: Tube
