Same model may have multiple batches, images only for reference.

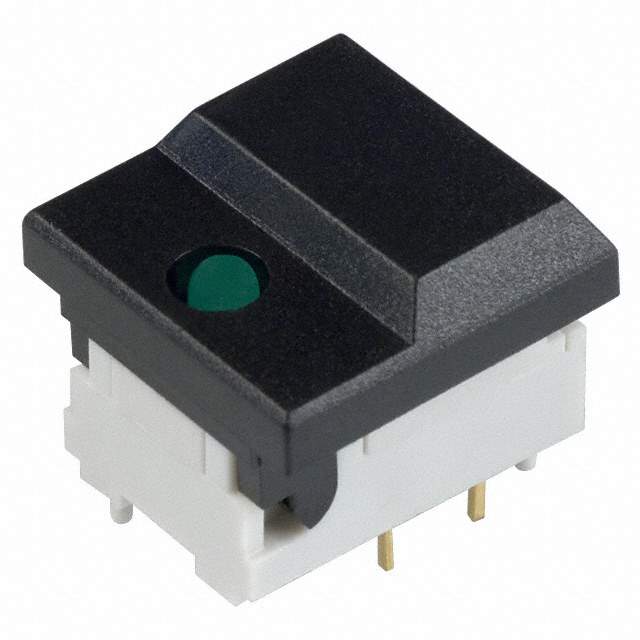

SETL BK GN AU EE Real Image
Same model may have multiple batches, images only for reference.

SETL BK GN AU EE

Part No SETL BK GN AU EE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SETL BK GN AU EE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Tray
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Green
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SETL
Other Names 752010-5001,SE T L BK GN AU EE,SETLBKGNAUEE,*SE T L BK GN AU EE,*SETL BK GN AU EE,401-1127
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233299-SETL BK GN AU EE
Ultra Librarian 3D Model Ultra Librarian SETL BK GN AU EE CAD Model

Description

The C&K DIGITAST Keyswitch is an illuminated pushbutton switch that has a voltage rating of 24 V.

  • Mounting: PC Pin technology
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 10mA (DC)
  • Mechanical Life: 500,000 cycles
  • Electrical Life: 500,000 cycles
  • Temperature Range: -25°C ~ 85°C
  • Mounting Type: Through-hole technology
  • Packaging: Tray
  • Color: Black
