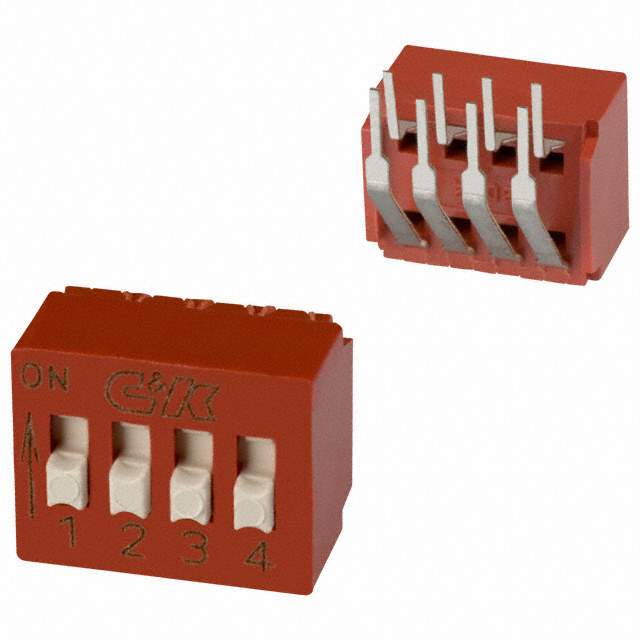

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series BD
Package Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.380" (9.64mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 0.480" (12.19mm)
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN3013,2266-BD04AV,*BD04AV
Standard Package 42
Win Source Part Number 1014880-BD04AV
Ultra Librarian 3D Model Ultra Librarian BD04AV CAD Model

Description

The C&K BD04AV is a DIP switch that is designed to be used in various applications that require high-performance switching.

  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Package: Tube
  • Standard Package: 42
  • Voltage Rating: 5VDC
  • Operating Temperature: -40°C to 85°C
