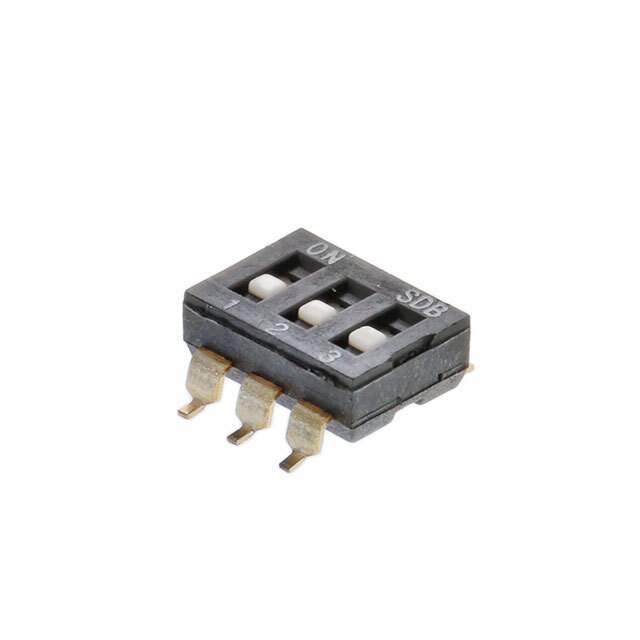

SDB03H0SBD Real Image
Same model may have multiple batches, images only for reference.

SDB03H0SBD

Part No SDB03H0SBD
Manufacturer C&K Components
Catalog DIP Switches
Description DIP 2P FLUSH ACT. GOLD CONTACT. / Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDB
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 3
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.157" (4.00mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA46), Nylon 4/6
Length 0.343" (8.71mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names 2266-SDB03H0SBD,CKN11996
Standard Package 55
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233711-SDB03H0SBD
Ultra Librarian 3D Model Ultra Librarian SDB03H0SBD CAD Model

Description

The 1233711-SDB03H0SBD is a SPST DIP switch from the SDB series of C&K Components.

  • Manufacturer: C&K Components
  • Circuit: SPST
  • Positions: Three
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull-wing
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.157" (4.00mm)
  • Length: 0.343" (8.71mm)
  • Mounting Type: Surface mount (SMD)
  • Body Material: Polyamide (PA46), nylon 4/6
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Washable: No
  • Temperature Range: -40°C to 85°C
  • Packaging: Tube
  • Standard Package: 55
