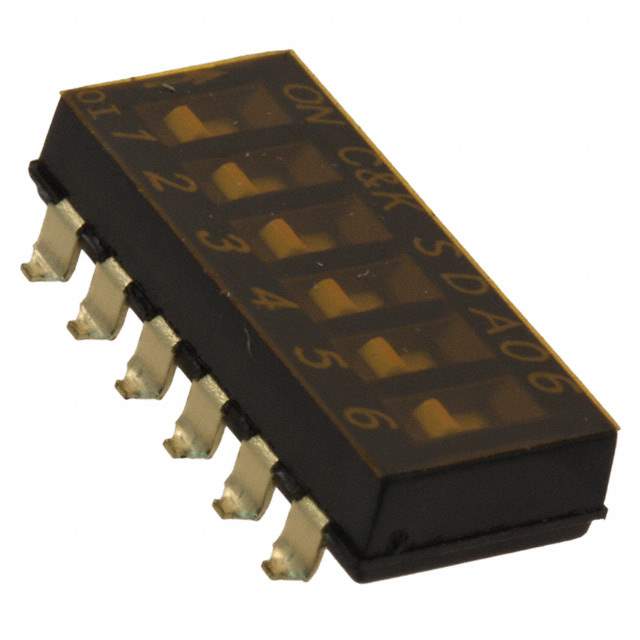

SDA06H0SBR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.676" (17.17mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA06H
Other Names 2266-SDA06H0SBR,CKN9495DKR,*SDA06H0SBR,CKN9495TR,CKN9495CT
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233785-SDA06H0SBR
Ultra Librarian 3D Model Ultra Librarian SDA06H0SBR CAD Model

Description

The SDA06H0SBR is a DIP switch from C&K Components that features six positions and a pitch of 0.100 inches (2.54mm), full.

  • Positions: Six
  • Pitch: 0.100 inches (2.54mm), full
  • Termination: Gull Wing
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Material: Polyphenylene sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Washable: Yes
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • REACH Compliant: No
  • Current Rating: 25mA
  • Temperature Range: -40°C to 85°C
  • Obsolete: No
  • REACH Unaffected: Yes
