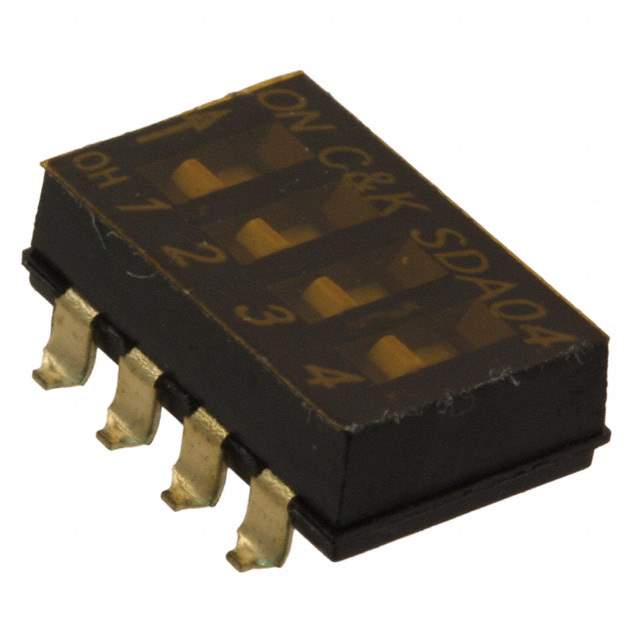

SDA04H0SB Real Image
Same model may have multiple batches, images only for reference.

SDA04H0SB

Part No SDA04H0SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
SDA04H0SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 18 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer C&K Components
Series SDA
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name SDA04H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number *SDA04H0SB, 2266-SDA04H0SB, CKN6065
Quantity per package 35
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933213-SDA04H0SB
Ultra Librarian 3D Model Ultra Librarian SDA04H0SB CAD Model

Description

The SDA04H0SB dip switch is a SPST position surface mount slide switch with a maximum current rating of 25mA and a maximum voltage rating of 24VDC. The switch has an operating temperature range of -40°C to 85°C.

  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Operating Temperature: -40°C to 85°C
  • Actuator Material: Nylon and Polyamide
  • Mounting: Surface Mount
  • Type: Dip Switch
