Same model may have multiple batches, images only for reference.

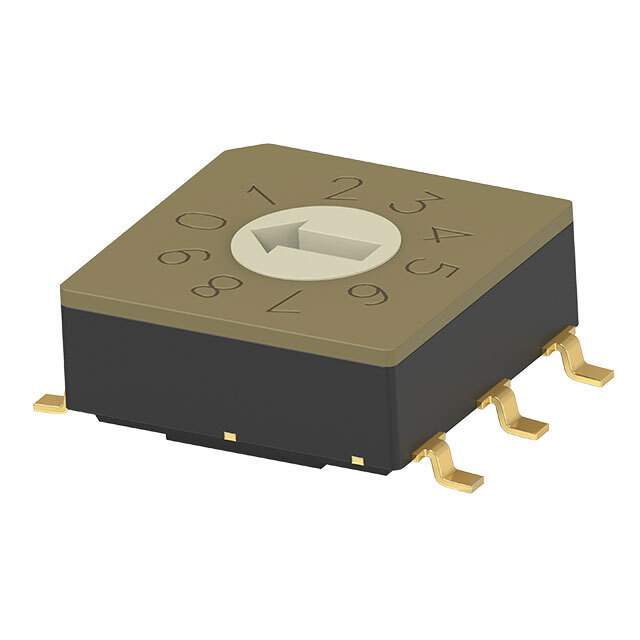

MRSSV0DC10SMGWTR Real Image
Same model may have multiple batches, images only for reference.

MRSSV0DC10SMGWTR

Part No MRSSV0DC10SMGWTR
Manufacturer TE Connectivity
Catalog DIP Switches
Description MRSSV 2.54 GRA SD COM 10 SMT GUL / Dip Switch BCD Complement 10 Position Surface Mount Rotary for Tool Actuator 0.4VA 20VAC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MRSS
Package Tape & Reel (TR) Cut Tape (CT)
Circuit BCD Complement
Number of Positions 10
Current Rating (Amps) 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.122" (3.10mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.283" (7.20mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1342726-MRSSV0DC10SMGWTR
Ultra Librarian 3D Model Ultra Librarian MRSSV0DC10SMGWTR CAD Model

Description

The MRSS series is a high-quality DIP switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Manufacturer: TE Connectivity ALCOSWITCH Switches
  • Win Source Part Number: 1342726-MRSSV0DC10SMGWTR
  • Series: MRSS
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull-Wing
  • Contact Finish: Gold
  • Package: Tape & Reel (TR) Cut Tape (CT)
  • Contact Material: Copper Alloy
  • Voltage Rating: 20VAC/DC
  • Height Above Board: 0.122" (3.10mm)
  • Length: 0.283" (7.20mm)
  • Standard Package: 1,000
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: BCD Complement
  • Actuator Type: Rotary for tool
  • Electrical Life: 10,000 steps
  • Mechanical Life: 10,000 steps
  • Actuator Level: Flush, recessed
  • Washable: No
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
