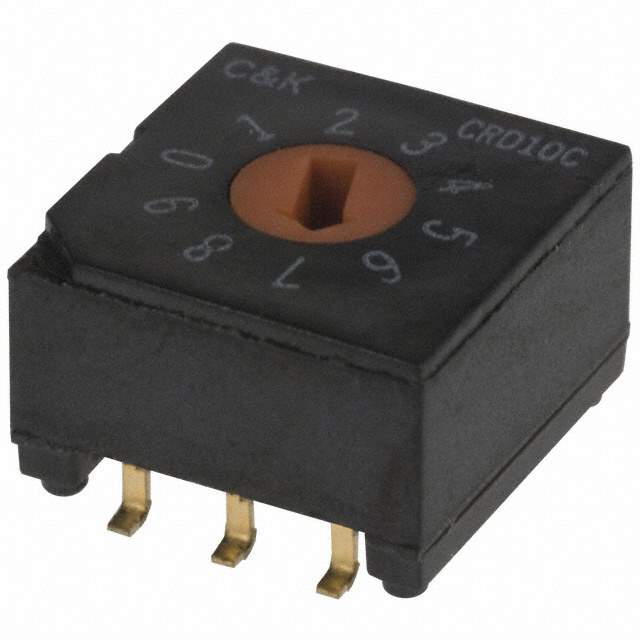

CRD10CM0SBR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr C&K
Series CRD
Package Tape & Reel
Circuit BCD Complement
Number of Positions 10
Current Rating (Amps) 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.271" (6.88mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable Yes
Features Process Sealed
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.394" (10.00mm)
Mechanical Life 30,000 Steps
Electrical Life 20,000 Steps
Base Product Number CRD10CM0
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1342497-CRD10CM0SBR
Ultra Librarian 3D Model Ultra Librarian CRD10CM0SBR CAD Model

Description

The CRD series DIP switch is a high-quality electronic component manufactured by C&K.

  • Design: Process Sealed
  • Number of Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Material: Beryllium Copper
  • Voltage Rating: 20VAC/DC
  • Current Rating: 0.4VA
  • Height Above Board: 0.271" (6.88mm)
  • Length: 0.394" (10.00mm)
  • Package: Tape & Reel
  • Washable: Yes
  • Operating Temperature: -20°C ~ 85°C
  • Circuit: BCD Complement
  • Actuator Type: Rotary for Tool
  • Electrical Life: 20,000 Steps
  • Mechanical Life: 30,000 Steps
