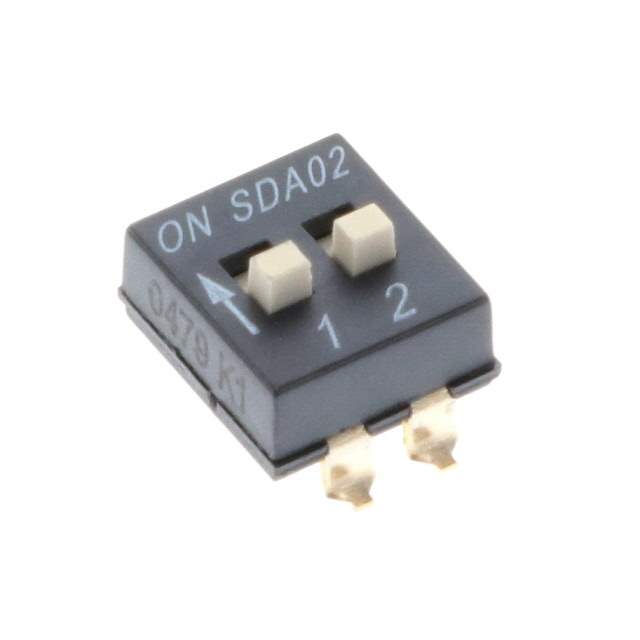

SDA02H1SBDR Real Image
Same model may have multiple batches, images only for reference.

SDA02H1SBDR

Part No SDA02H1SBDR
Manufacturer C&K Components
Catalog DIP Switches
Description DIP SWITCH SMD 2 POS SLIDE / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA02H1SBDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA02H
Other Names 108-SDA02H1SBDRTR,SDA02H1SBDRINACTIVE,2266-SDA02H1SBDR,CKN12289,108-SDA02H1SBDRDKR,CKN12289-6,CKN12289-2,CKN12289-1,CKN12289-2,CKN12289-6,CKN12289-1,108-SDA02H1SBDRINACTIVEDKR,108-SDA02H1SBDRCT,CKN12289
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233787-SDA02H1SBDR
Ultra Librarian 3D Model Ultra Librarian SDA02H1SBDR CAD Model

Description

The SDA02H1SBDR is a 2-position DIP switch from C&K's SDA series.

  • Positions: 2
  • Series: SDA
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.214" (5.45mm)
  • Length: 0.278" (7.06mm)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Raised
  • Washable: No
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • REACH Unaffected: Yes
