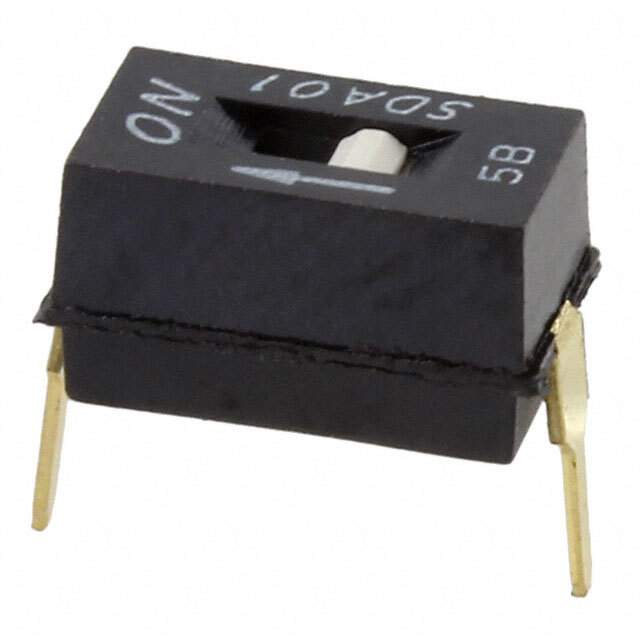

SDA01H0BD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.183" (4.65mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.178" (4.52mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA01H
Other Names PTS645SM702LFS,-SDA01H0BD,CKN10920,*SDA01H0BD,SDA01H0BD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233782-SDA01H0BD
Ultra Librarian 3D Model Ultra Librarian SDA01H0BD CAD Model

Description

The SDA series DIP switch from C&K is a through-hole mounting device with a pitch of 2.54mm.

  • Manufacturer: C&K
  • Series: SDA
  • Mounting Type: Through-Hole
  • Pitch: 2.54mm
  • Circuit: SPST
  • Positions: 1
  • Actuator Type: Slide
  • Actuator Level: Flush, Recessed
  • Electrical Life: 1,000 Cycles
  • Mechanical Life: 1,000 Cycles
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 4.65mm
  • Length: 4.52mm
  • Operating Temperature: -40°C to 85°C
  • RoHS Compliant: Yes
  • REACH Status: Unaffected
  • Packaging: Tube
