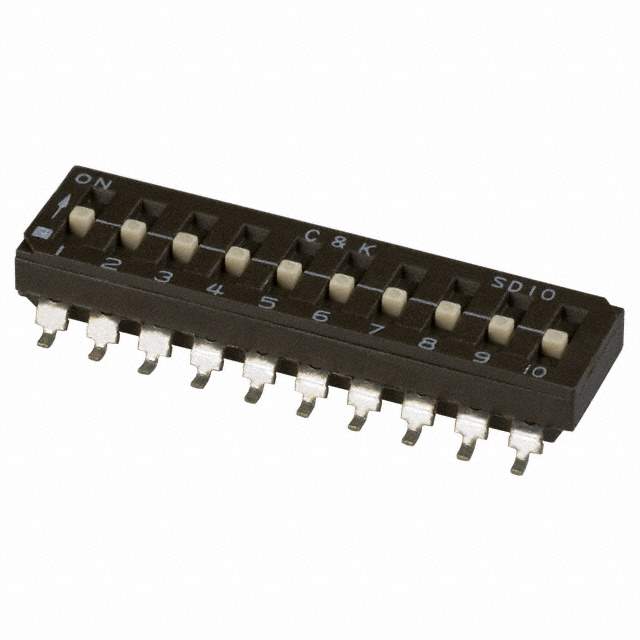

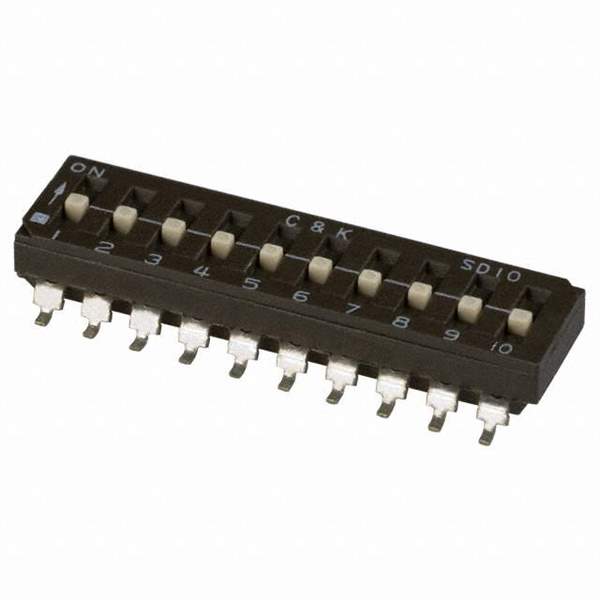

SD10H1SB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.180" (4.57mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 1.058" (26.87mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD10H1
Other Names CKN6135,*SD10H1SB
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233830-SD10H1SB
Ultra Librarian 3D Model Ultra Librarian SD10H1SB CAD Model

Description

The SD10H1SB is a 10-position DIP switch from C&K.

  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Body Material: Polyphthalamide (PPA)
  • Contact Material: Beryllium Copper
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Circuit Type: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Actuator Level: Raised
  • Washable: Yes
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: SMD (SMT)
  • Package: Tube
  • Length: 1.058" (26.87mm)
  • Height Above Board: 0.180" (4.57mm)
