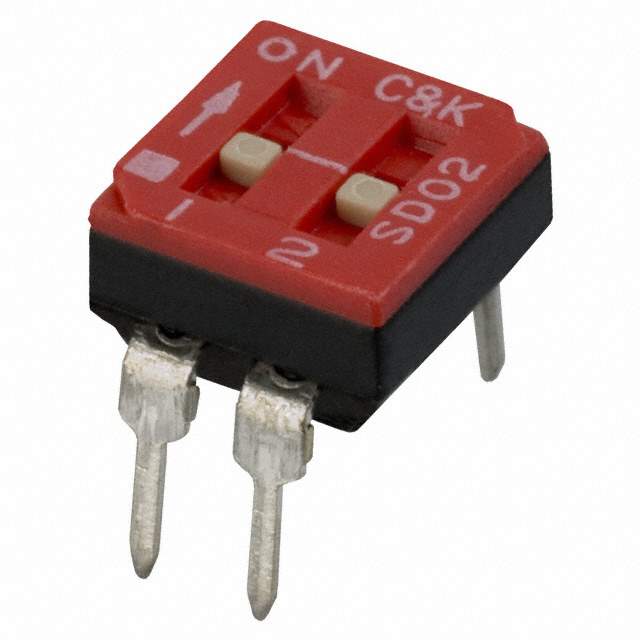

SD02H0B Real Image
Same model may have multiple batches, images only for reference.

SD02H0B

Part No SD02H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD02H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.258" (6.55mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD02H0
Other Names 2266-SD02H0B,*SD02H0B,CKN6110
Standard Package 85
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233825-SD02H0B
Ultra Librarian 3D Model Ultra Librarian SD02H0B CAD Model

Description

The SD series DIP switch from C&K is a single pole, single throw switch with a slide actuator.

  • Pitch: 0.100" (2.54mm), full
  • Number of Positions: 2
  • Mounting Type: Through-Hole
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Body Material: Polyphthalamide (PPA)
  • Height Above Board: 0.178" (4.52mm)
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Package: Tube
  • Operating Temperature: -40°C ~ 85°C
  • Actuator Level: Flush, Recessed
  • Washable: Yes
