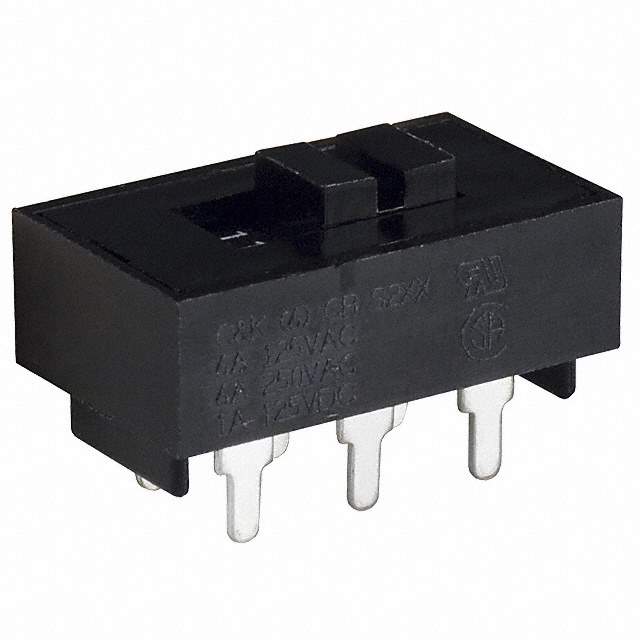

S602131MS02Q Real Image
Same model may have multiple batches, images only for reference.

S602131MS02Q

Part No S602131MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 12A 125V  /  Slide Switch DPDT Through Hole
Datasheet
S602131MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On (Line Voltage Selector)
Current Rating (Amps) 12A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Screwdriver Slot
Actuator Length 1.27mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features No Marking
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S602131
Other Names *S602131MS02Q,CKN10661,2266-S602131MS02Q,S602131MS02Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233188-S602131MS02Q
Ultra Librarian 3D Model Ultra Librarian S602131MS02Q CAD Model

Description

The S series slide switch from C&K Components is a DPDT switch with a screwdriver slot actuator and a through hole mounting style.

  • Contact Finish: Silver
  • Contact Material: Copper
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 125V
  • Switch Function: On-On (Line Voltage Selector)
  • Switch Travel: 4.57mm
  • Actuator Length: 1.27mm
  • Electrical Life: 10,000 cycles
