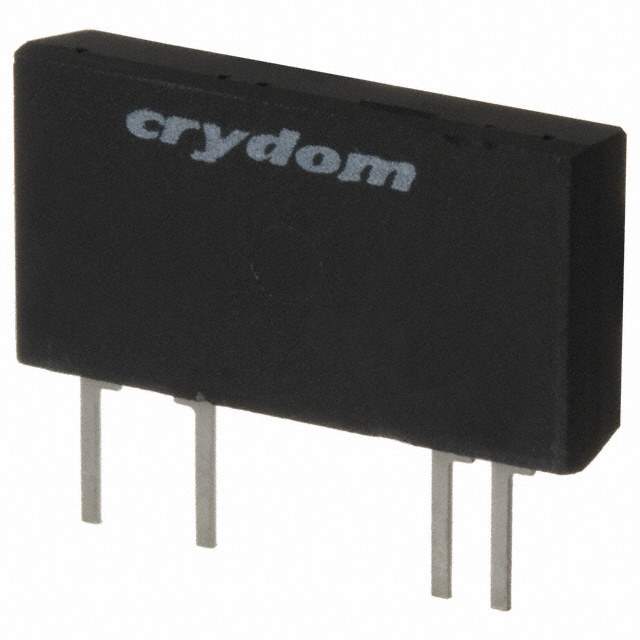

The LC241R is a solid-state relay (SSR) manufactured by Crydom Co. It is designed for switching AC loads and provides electrical isolation between the control circuit and the load circuit. SSRs offer several advantages over electromechanical relays, including faster switching speeds, longer lifespan, and greater reliability.

Applications

• Industrial automation
• Heating and cooling systems
• Lighting control
• Motor control
• Power switching

Features

• AC output solid-state relay
• Load voltage: 24-280 VAC
• Load current: Up to 10A
• Control voltage: 3-32 VDC
• Zero-crossing or random turn-on options
• Optical isolation
• LED indication

Benefits

• Provides reliable switching of AC loads
• Offers electrical isolation for safety
• Eliminates mechanical wear and tear
• Reduces maintenance costs
• Operates silently

Additional Details

The LC241R SSR is designed to switch AC loads ranging from 24 to 280 VAC, with a maximum load current of up to 10A. It is controlled by a DC voltage ranging from 3 to 32 VDC. The SSR is available in both zero-crossing and random turn-on versions. Zero-crossing SSRs switch the load when the AC voltage is near zero, reducing inrush current and electrical noise. Random turn-on SSRs switch the load immediately upon application of the control voltage. Optical isolation provides electrical isolation between the control circuit and the load circuit, ensuring safety and preventing ground loops. An LED indicator provides visual indication of the SSR's operating status. The LC241R is typically packaged in a panel-mount package with screw terminals for easy installation. Detailed specifications, including voltage and current ratings, isolation voltage, and switching characteristics, can be found in the product datasheet.
