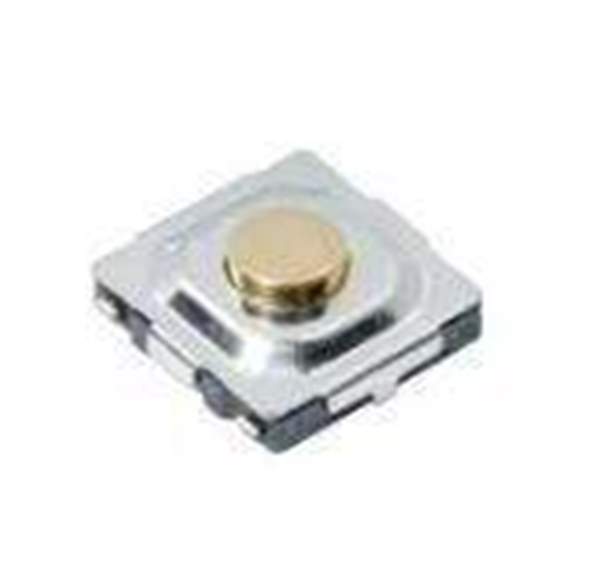

PTS526SK17SMTR2 LFS C&K
Same model may have multiple batches, images only for reference.

PTS526SK17SMTR2 LFS

Part No PTS526SK17SMTR2 LFS
Manufacturer C&K Components
Catalog Tactile Switches
Description Tactile Switches 5.20 x 5.20 Tact Switch for SMT
Datasheet
PTS526SK17SMTR2 LFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K Switches
Category Tactile Switches
Illuminated Non-Illuminated
Mounting Style SMD/SMT
Mounting Direction Straight
Actuator Type Round
Switch Function OFF - (ON)
Operating Force 250 gf
Current Rating 50 mA
Voltage Rating DC 12 VDC
Ground Terminal No
Ultra Librarian 3D Model Ultra Librarian PTS526SK17SMTR2 LFS CAD Model

Description

The PTS526 series tactile switch is a small 5.2 x 5.2 form factor in SMT version with 4 different heights and 3 available actuation forces, ideal for general usage applications. PTS526 tactile switch also includes ground pin options.
