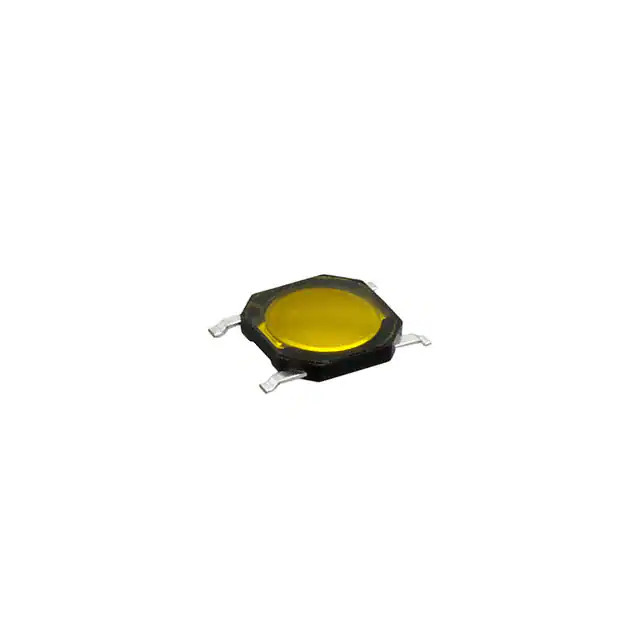

PTS526 SM08 SMTR2 LFS C&K Components
Same model may have multiple batches, images only for reference.

PTS526 SM08 SMTR2 LFS

Part No PTS526 SM08 SMTR2 LFS
Manufacturer C&K Components
Catalog Tactile Switches
Description TACT 5.2 X 5.2, 0.8 MM H, 160GF, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
PTS526 SM08 SMTR2 LFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series PTS526
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Flush
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.80mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.80mm x 4.80mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection IP40
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material -
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Base Product Number PTS526
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376456-PTS526 SM08 SMTR2 LFS
Ultra Librarian 3D Model Ultra Librarian PTS526 SM08 SMTR2 LFS CAD Model

Description

The PTS526 SM08 SMTR2 LFS is a tactile switch from C&K's PTS526 series.

  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Temperature Range: -20°C to 70°C
  • Ingress Protection: IP40
  • Circuit: SPST-NO
  • Switch Function: Off-Momentary
  • Actuator: Flush
  • Mechanical Life: 500,000 Cycles
  • Operating Force: 160gf
  • Contact Rating: 0.05A @ 12VDC
