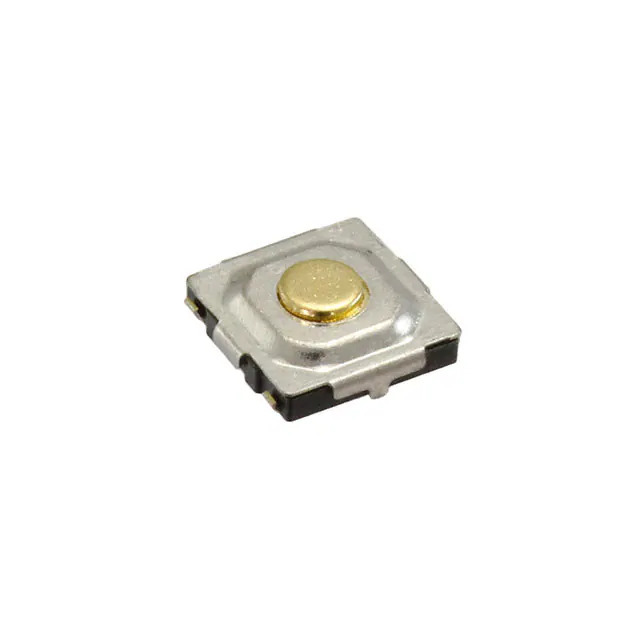

Same model may have multiple batches, images only for reference.

PTS526 SKG15J SMTR2 LFS

Name: PTS526 SKG15J SMTR2 LFS
Brand: C&K Components
SKU: 1376469
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTS526 SKG15J SMTR2 LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	TACT 5.2 X 5.2, 1.5 MM H, 260GF, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	PTS526 SKG15J SMTR2 LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS526
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	1.50mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	5.20mm x 5.20mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	IP40
Features	-
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	-
Switch Travel	0.25mm
Mechanical Life	200,000 Cycles
Base Product Number	PTS526
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376469-PTS526 SKG15J SMTR2 LFS
Ultra Librarian 3D Model	Ultra Librarian PTS526 SKG15J SMTR2 LFS CAD Model

Alternative Products

Description

The PTS526 SKG15J SMTR2 LFS is a tactile switch manufactured by C&K.

Mounting Type: Surface Mount
Circuit Configuration: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Actuator Height off PCB: 1.50mm
Operating Force: 260gf
Mechanical Life: 200,000 cycles
Contact Rating: 0.05A @ 12VDC
Outline Dimension: 5.20mm x 5.20mm
Illumination: Non-Illuminated
Temperature Range: -20°C to 70°C
Ingress Protection: IP40
