Same model may have multiple batches, images only for reference.

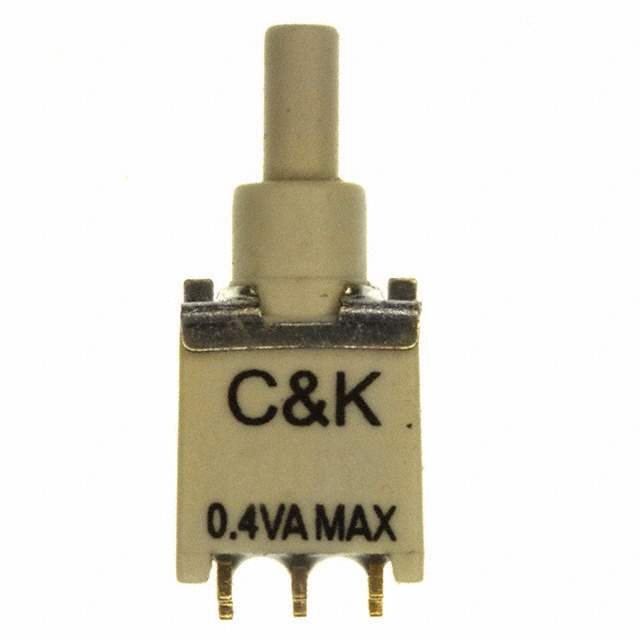

EP12SD1SA1BE Real Image
Same model may have multiple batches, images only for reference.

EP12SD1SA1BE

Part No EP12SD1SA1BE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
Datasheet
EP12SD1SA1BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Active
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Round, Plunger
Color - Actuator/Cap White
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C to 85°C
Electrical Life 30,000 Cycles
Win Source Part Number 105367-EP12SD1SA1BE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EP12SD1SA1BE CAD Model

Description

EP12SD1SA1BE Tactile Switch

The EP12SD1SA1BE is a high-quality tactile switch designed for reliable performance in various electronic applications. With its compact design, this switch offers a durable and responsive user interface solution.

  • Applications:
    • Consumer Electronics
    • Home Appliances
    • Telecommunication Devices
    • Computer Peripherals
  • Features and Benefits:
    • Compact and lightweight design for space-saving integration
    • High reliability with a long operational life
    • Responsive tactile feedback for a better user experience
    • RoHS compliant, ensuring environmental safety
    • Easy to mount, enhancing production efficiency
  • Additional Details: The EP12SD1SA1BE offers a current rating of 50mA at 12V DC, providing sufficient power capacity for most low-power electronic applications.
