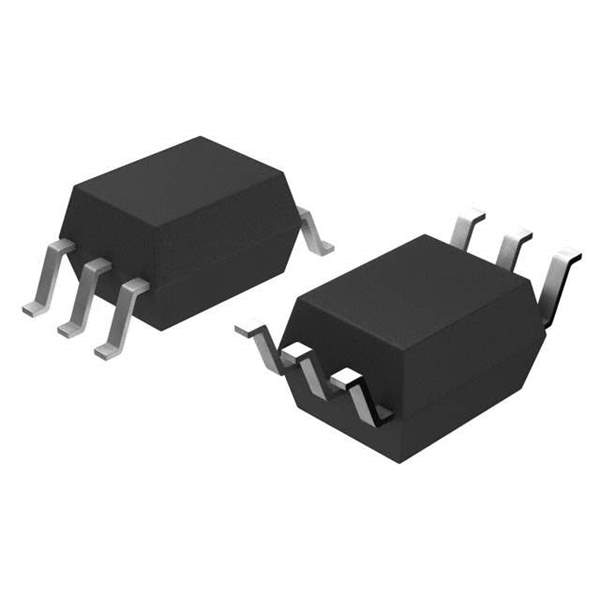

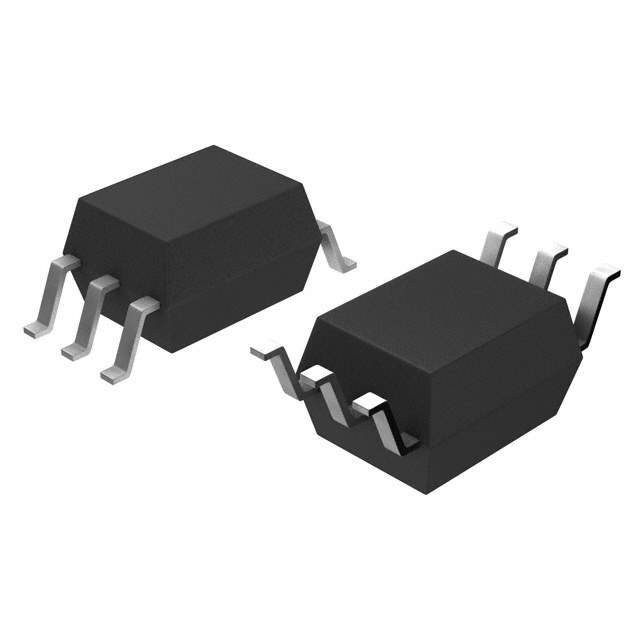

G3VM-353H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Mounting Style SMD
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Parts Input Voltage (V) 1.15VDC
Load Voltage (V) 0V ~ 350V
Load Current 120mA
On-State Resistance (Maximum) 25 Ohms
Termination Style Gull Wing
Manufacturer Package 6-SOP (0.173", 4.40mm)
Supplier Device Package 6-SOP
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1176469-G3VM-353H
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G3VM-353H CAD Model

Description

The relay is in the relays category and has a load current of 120mA and a load voltage of 0V ~ 350V.

  • Load Current: 120mA
  • Load Voltage: 0V ~ 350V
  • Output Type: AC, DC
  • Circuit Configuration: SPST-NC (1 Form B)
  • On-State Resistance (Maximum): 25 Ohms
  • Manufacturer Pack Quantity: 300
  • Supplier Device Package: 6-SOP
  • Manufacturer Package: 6-SOP (0.173", 4.40mm)
