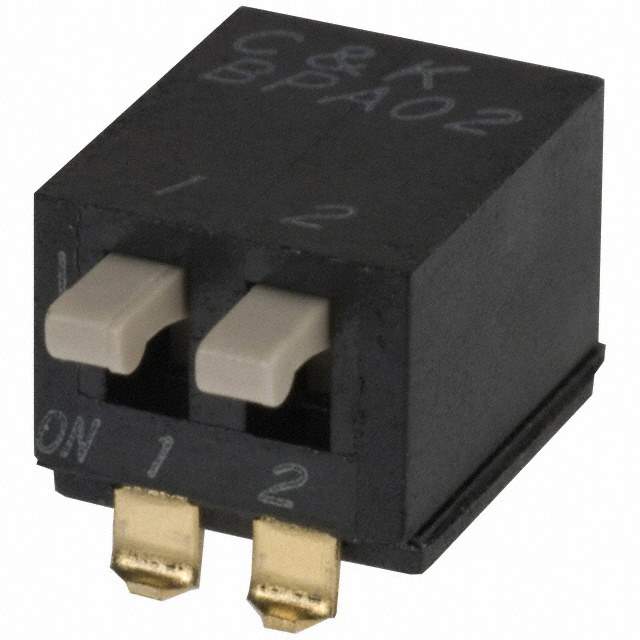

BPA02SB Real Image
Same model may have multiple batches, images only for reference.

BPA02SB

Part No BPA02SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 5V
Datasheet
BPA02SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.274" (6.95mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.276" (7.00mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 134966-BPA02SB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BPA02SB CAD Model

Description

BPA02SB

The BPA02SB is a versatile electronic component ideal for a range of applications. Designed with precision, it offers reliable performance and durability.

  • Home automation systems
  • Embedded systems
  • Smart lighting solutions

Features and Benefits:

  • Compact design for easy integration
  • Low power consumption
  • High operational efficiency
  • Long lifespan for reduced maintenance

This component is an excellent choice for projects that require robust performance and energy efficiency.
