Same model may have multiple batches, images only for reference.

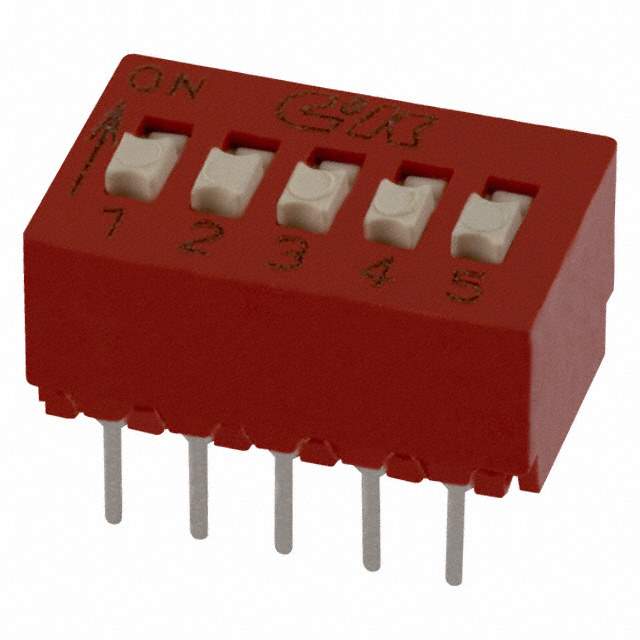

BD05 Real Image
Same model may have multiple batches, images only for reference.

BD05

Part No BD05
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 5V
Datasheet
BD05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Dip Switch SPST Position Through Hole Slide (Standard) Actuator 100mA 5VDC
Manufacturer C&K Components
Series BD
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 2266-BD05, CKN3004, *BD05
Quantity per package 35
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863904-BD05
Ultra Librarian 3D Model Ultra Librarian BD05 CAD Model

Description

The C&K Components BD series dip switch is a SPST position through hole slide switch with a standard actuator.

  • Maximum Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Operating Temperature: -40°C ~ 85°C
  • Package Type: Tube
  • Mounting Style: Through hole
  • Category: Switches
  • ECCN: EAR99
  • Supply and Demand: Limited
  • Quantity per Package: 35 switches
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 9 weeks
  • REACH: Unaffected
  • HTSUS: 8536.50.9065
  • Other Part Numbers: 2266-BD05, CKN3004, *BD05
