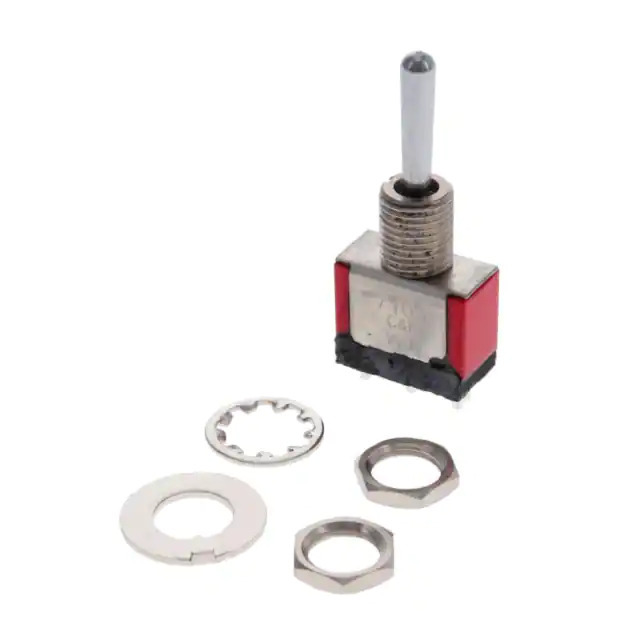

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 12.45mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101SD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375958-7101SDAQE
Ultra Librarian 3D Model Ultra Librarian 7101SDAQE CAD Model

Description

The 1375958-7101SDAQE is a toggle switch from C&K's 7000 series.

  • Mounting: Panel mount, right angle installation
  • Current Rating: 5A (AC/DC)
  • Voltage Ratings: 120V AC and 28V DC
  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard round shape made of brass and chrome plated
  • Terminals: Epoxy sealed
  • Actuator Length: 12.45mm
  • Bushing Thread: 1/4-40
  • Panel Cutout: 6.35mm diameter
  • Illumination: Non-illuminated
  • Termination Style: PC pin
  • Electrical Life: 100,000 cycles
