Same model may have multiple batches, images only for reference.

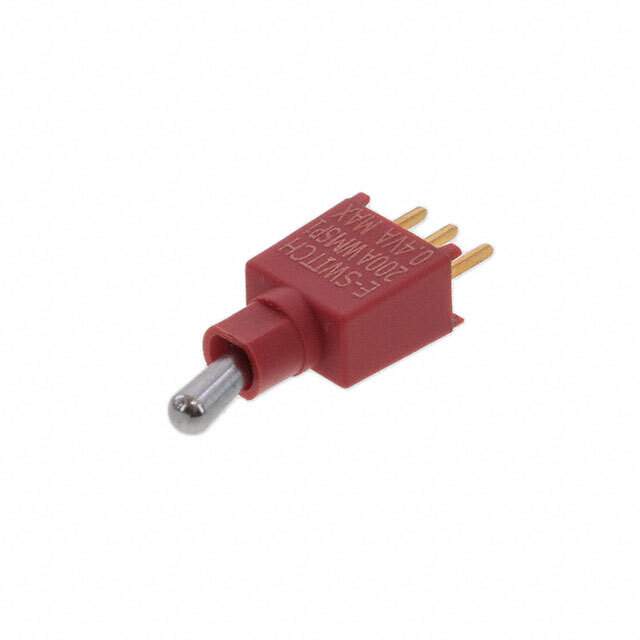

200AWMSP1T2A1M2RE Real Image
Same model may have multiple batches, images only for reference.

200AWMSP1T2A1M2RE

Part No 200AWMSP1T2A1M2RE
Manufacturer E-Switch
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V / Toggle Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr E-Switch
Series 200A
Package Bulk
Mounting Type Through Hole
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.10mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 50,000 Cycles
Base Product Number 200AWMSP1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 200AWMSP1T2A1M2RE-ND,EG5773
Standard Package 63
Win Source Part Number 1191666-200AWMSP1T2A1M2RE
Ultra Librarian 3D Model Ultra Librarian 200AWMSP1T2A1M2RE CAD Model

Description

The 200A series toggle switch from E-Switch is a SPDT circuit switch with a standard round actuator type and non-illuminated illumination.

  • Circuit: SPDT
  • Actuator Type: Standard Round
  • Illumination: Non-Illuminated
  • Voltage Rating: 20 V AC and DC
  • Current Rating: 0.4VA
  • Actuator Length: 6.10mm
  • Switch Function: On-On
  • Terminal: Epoxy-Sealed
  • Ingress Protection: IP67 (Dust-tight and Waterproof)
  • Actuator Material: Brass, Chrome Plated
  • Bushing Thread: Unthreaded
  • Mounting Type: Through-Hole
  • Operating Temperature: -30°C to 85°C
  • Electrical Life: 50,000 Cycles
