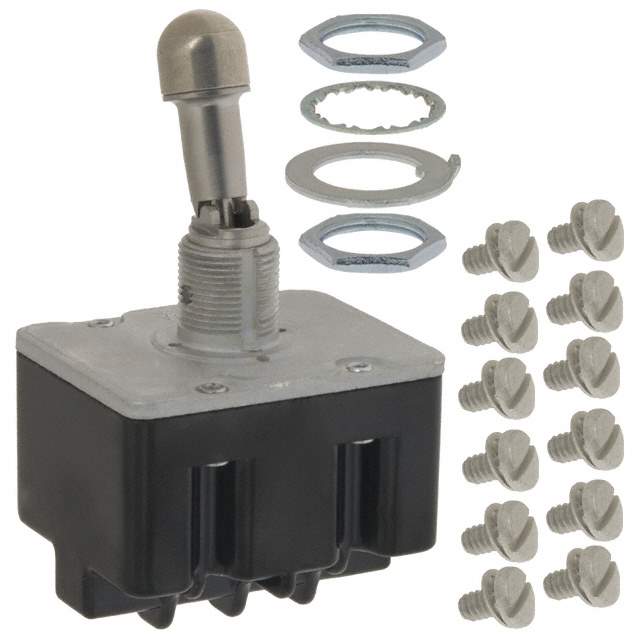

4TL1-3D Real Image
Same model may have multiple batches, images only for reference.

4TL1-3D

Part No 4TL1-3D
Manufacturer Honeywell
Catalog Toggle Switches
Description SWITCH TOGGLE 4PDT 15A 125V / Toggle Switch 4PDT Panel Mount
Datasheet
4TL1-3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr Honeywell Sensing and Productivity Solutions
Series TL
Package Bulk
Mounting Type Panel Mount
Circuit 4PDT
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Locking Lever
Actuator Length 26.67mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection Environment Sealed
Temperature Range - Operating -65°C ~ 71°C
Actuator Material Nickel Plated
Base Product Number 4TL1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 4TL13D,480-2218
Standard Package 1
Win Source Part Number 1218342-4TL1-3D
Ultra Librarian 3D Model Ultra Librarian 4TL1-3D CAD Model

Description

The TL series toggle switch from Honeywell Sensing and Productivity Solutions is a 4PDT circuit switch with a locking lever actuator type.

  • Switch Function: On-On
  • Voltage Rating: 125V AC
  • Termination Style: screw terminal
  • Mounting: panel mounted
  • Panel Cutout Dimension: 12.40mm diameter
  • Actuator Material: nickel plated
  • Bushing Thread: 15/32-32
  • Current Rating: 15A (AC)
  • Operating Temperature: -65°C ~ 71°C
  • Environment Sealed: yes
  • Package: bulk
  • Standard Package: 1 switch
