Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K Components
Series 7000
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Locking Lever
Actuator Length 17.88mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101K9
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 857048-7101K9AQE
Ultra Librarian 3D Model Ultra Librarian 7101K9AQE CAD Model

Description

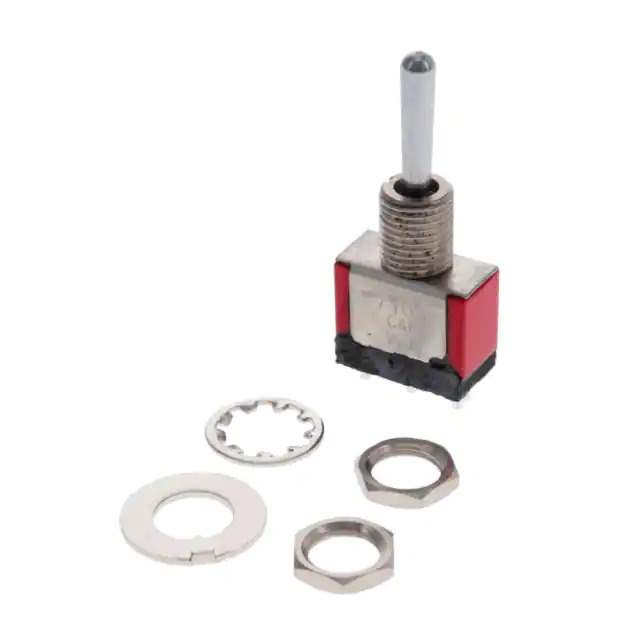

The 857048-7101K9AQE is a SPDT toggle switch from the 7000 series by C&K Components.

  • Termination Style: PC Pin
  • Features: Epoxy Sealed Terminals
  • Voltage Rating: 120V AC, 28V DC
  • Package: Bulk
  • Standard Package: 80 pieces
  • Actuator Type: Locking Lever
  • Electrical Life: 100,000 cycles
  • Product Status: Active
