Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr HARTING
Series M12
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert M12-4
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Threaded
Orientation D
Primary Material Metal
Shell Material Zinc Die Cast
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP20
Shielding Shielded
Current Rating (Amps) 4A
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Contact Material Copper Alloy
Insert Material Polyamide (PA), Nylon
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 854543-21033816410
Ultra Librarian 3D Model Ultra Librarian 21033816410 CAD Model

Description

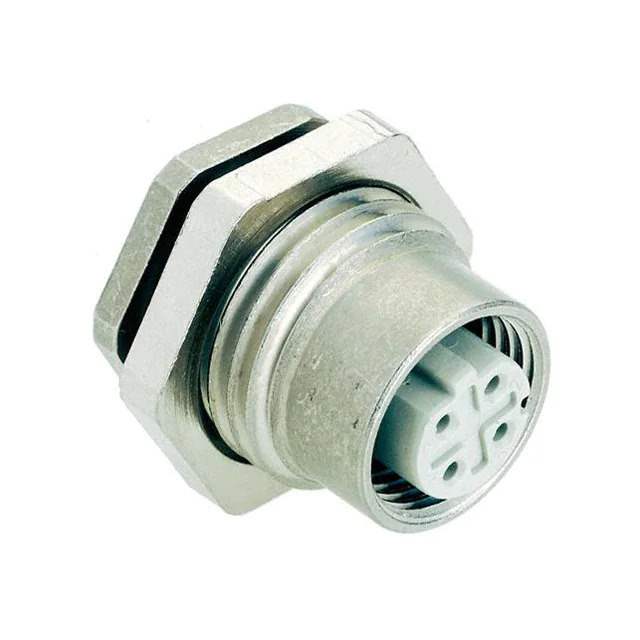

The 854543-21033816410 is a circular connector assembly from the M12 series.

  • Positions: 4
  • Color: Silver
  • Connector Type: Receptacle with female sockets
  • Termination: Soldering
  • Fastening Type: Threaded
  • Package: Tube
  • Shielded: Yes
  • Ingress Protection: IP20
  • Contact Material: Copper alloy
  • Shell Material: Zinc die-cast
  • Mounting: Panel mounting and through-hole mounting
