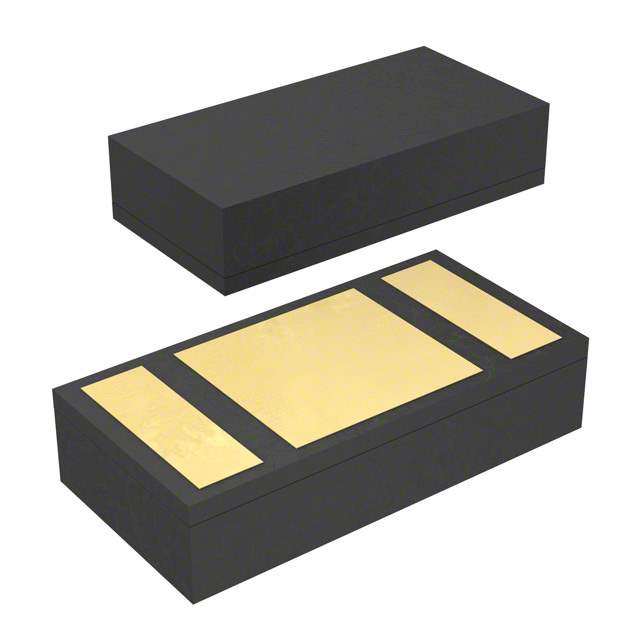

VMMK-3503-TR2G Real Image
Same model may have multiple batches, images only for reference.

VMMK-3503-TR2G

Part No VMMK-3503-TR2G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP WIMAX 500MHZ-18GHZ 0402 / RF Amplifier IC WiMax, WLAN 500MHz ~ 18GHz 0402
Datasheet
VMMK-3503-TR2G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Broadcom Limited
Package Tape & Reel (TR)
Product Status Obsolete
Frequency 500MHz ~ 18GHz
P1dB 8dBm
Gain 12dB
Noise Figure 3.5dB
RF Type WiMax, WLAN
Voltage - Supply 5V
Current - Supply 58mA
Test Frequency 6GHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.33.0001
Standard Package 1
Win Source Part Number 1103943-VMMK-3503-TR2G
Ultra Librarian 3D Model Ultra Librarian VMMK-3503-TR2G CAD Model

Description

The Broadcom Limited VMMK-3503-TR2G is an RF amplifier that operates at a frequency range of 500MHz to 18GHz.

  • Gain: 12dB
  • Noise Figure: 3.5dB
  • Applications: WiMax and WLAN applications
  • Device Type: Surface mount device
  • Package: 0402 (1005 Metric) package
  • Voltage Supply: 5V
  • Current Supply: 58mA
  • P1dB: 8dBm
  • Status: Obsolete product that has no alternative parts
