Same model may have multiple batches, images only for reference.

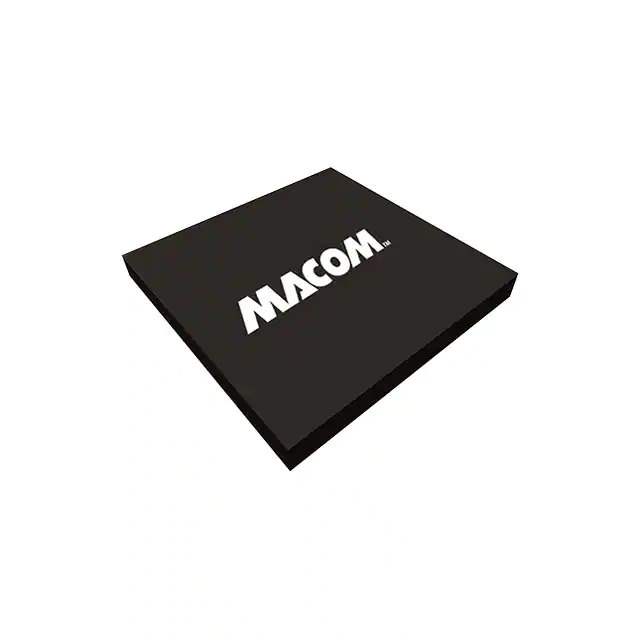

MAAM26100-B1 Real Image
Same model may have multiple batches, images only for reference.

MAAM26100-B1

Part No MAAM26100-B1
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description IC RF AMP GPS 2GHZ-6GHZ CR2
Datasheet
MAAM26100-B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr M/A-Com Technology Solutions
Package Tray
Product Status Active
Frequency 2GHz ~ 6GHz
P1dB 27dBm
Gain 19dB
RF Type General Purpose
Voltage - Supply 8V
Current - Supply 475mA
Test Frequency 2GHz ~ 6GHz
Mounting Type Surface Mount
Package / Case CR-2
Supplier Device Package CR-2
Base Product Number MAAM26100
Standard Package 50 pcs
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 846718-MAAM26100-B1
Ultra Librarian 3D Model Ultra Librarian MAAM26100-B1 CAD Model

Description

The 846718-MAAM26100-B1 is an RF amplifier designed for general-purpose applications.

  • Frequency Range: 2GHz to 6GHz
  • Gain: 19dB
  • Current Supply: 475mA
  • P1dB: 27dBm
  • Voltage Supply: 8V
  • Mounting Type: Surface Mount
  • Package: CR-2
  • Product Status: Active
  • Manufacturer: M/A-Com Technology Solutions
  • ECCN: EAR99
  • HTSUS Code: 8542.33.0001
