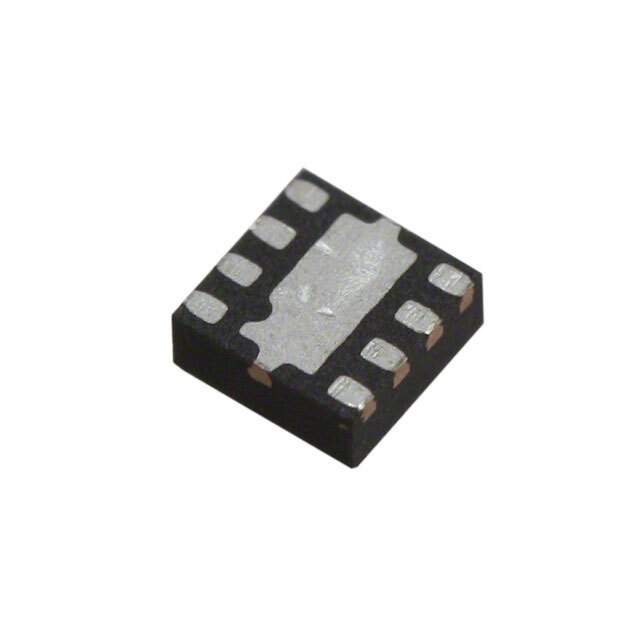

MGA-545P8-BLK Real Image
Same model may have multiple batches, images only for reference.

MGA-545P8-BLK

Part No MGA-545P8-BLK
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP 50MHZ-7GHZ SMD / RF Amp Single Power Amp 7GHz 8-Pin LPCC Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Frequency 50MHz to 7GHz
P1dB 21.7dBm (147.9mW)
Gain 16.3dB
Noise Figure 2.7dB
RF Type Cellular, PCS, WLAN, WLL
Supply Voltage - Operating 2.7 V to 4 V
Operating Supply Current 110mA to 145mA
Test Frequency 2GHz
Case / Package 8-LPCC (2x2)
Win Source Part Number 058478-MGA-545P8-BLK
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 100
Family Name MGA-545P8
Introduction Date April 01, 2004
ECCN 5A991.g
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MGA-545P8-BLK CAD Model

Description

The Broadcom Limited 058478-MGA-545P8-BLK is an RF amplifier used in cellular, PCS, WLAN and WLL applications.

  • Application: Designed for use in high-frequency applications and has a limited supply and demand status.
  • Series: MGA-545P8
  • Voltage Range: 2.7V to 4V
