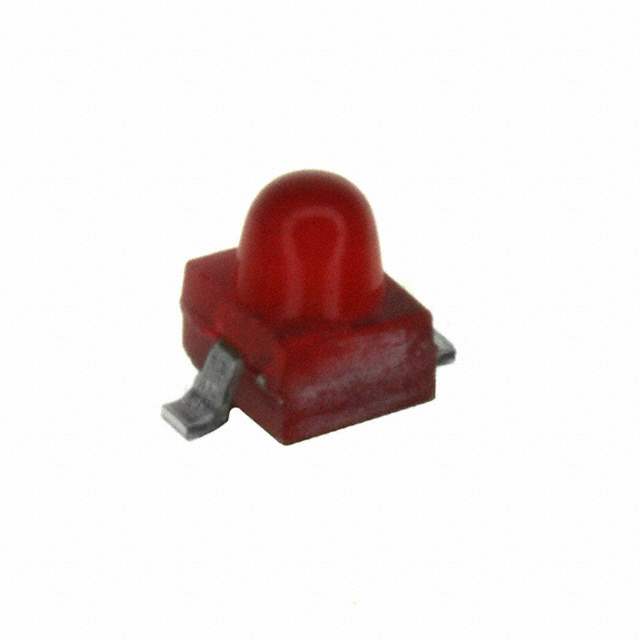

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 1.2mcd
Lens Style/Size Round with Domed Top, 1.78mm
Forward Voltage 1.6V
Current - Test 10mA
Viewing Angle 90°
Mounting SMD (SMT)
Wavelength - Dominant 640nm
Wavelength - Peak 655nm
Case / Package Gull Wing
Height (Max) 2.92mm
Win Source Part Number 068158-HLMP-6000-E0011
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian HLMP-6000-E0011 CAD Model

Description

The Broadcom Limited HLMP-6000-E0011 is a high-quality LED indication component that is widely used in various applications.

  • Viewing Angle: 90°
  • Forward Voltage: 1.6V
  • Lens Color: Red
  • Lens Transparency: Diffused
  • Millicandela Rating: 1.2mcd
  • Wavelength-Dominant: 640nm
  • Wavelength-Peak: 655nm
  • Height: 2.92mm
  • Package: Gull-wing
  • Package Quantity: 1,500
