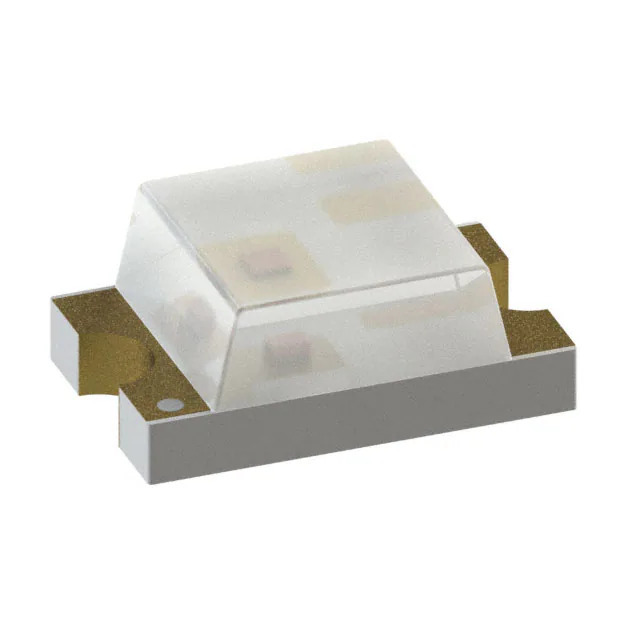

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 50mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 170°
Mounting Type Surface Mount
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Features -
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 0.90mm
Base Product Number HSME-C170
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1378597-HSME-C170
Ultra Librarian 3D Model Ultra Librarian HSME-C170 CAD Model

Description

The HSME-C170 is a green LED manufactured by Broadcom Limited.

  • LED Color: Green
  • Shape: Rectangular
  • Lens Type: Flat Top
  • Size: 2.00mm L x 1.25mm W
  • Mounting Type: Surface Mount
  • Forward Voltage (Vf): 2.1V
  • Test Current: 20mA
  • Viewing Angle: 170°
  • Dominant Wavelength: 572nm
  • Peak Wavelength: 570nm
  • Millicandela Rating: 50mcd
  • REACH: Unaffected
  • ECCN: EAR99
