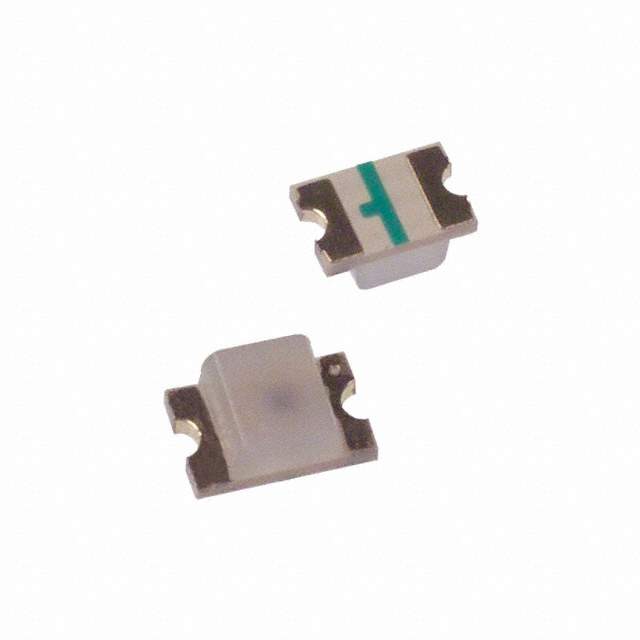

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Color Blue
Lens Color White
Lens Transparency Diffused
Millicandela Rating 6mcd
Lens Style/Size Rectangle with Domed Top, 2.60mm x 1.00mm
Forward Voltage 3.8V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 466nm
Wavelength - Peak 428nm
Case / Package Chip LED
Height (Max) 1.00mm
Win Source Part Number 1043989-HSMB-C170
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMB-C170 CAD Model

Description

The HSMB-C170 is a chip LED manufactured by Broadcom Limited.

  • Packaging: Reel - TR
  • Color: Blue
  • Lens Transparency: Diffused
  • Lens Style/Size: Rectangle with Domed Top, 2.60mm x 1.00mm
  • Viewing Angle: 170°
  • Millicandela Rating: 6mcd
  • Forward Voltage: 3.8V
  • Current Test: 20mA
  • Wavelength-Dominant: 466nm
  • Wavelength-Peak: 428nm
  • Status: Obsolete (EOL)
  • Category: Optoelectronics
