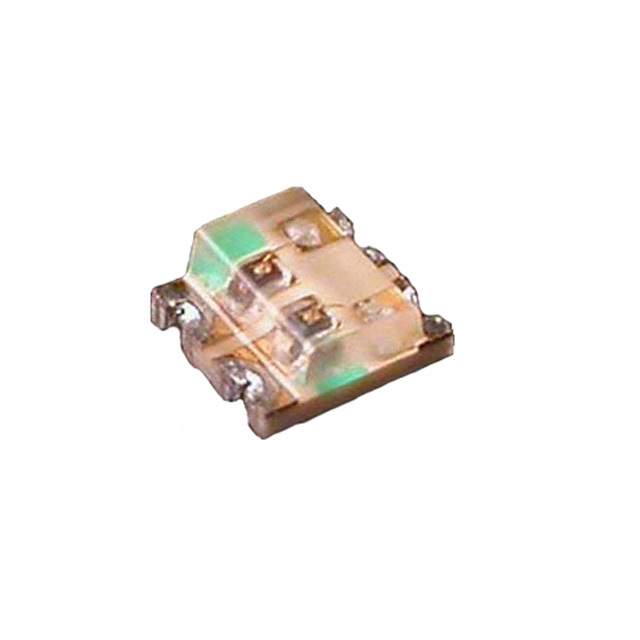

APTB1615SURKCGKC-F01 Real Image
Same model may have multiple batches, images only for reference.

APTB1615SURKCGKC-F01

Part No APTB1615SURKCGKC-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR CHIP SMD / Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 0606 (1616 Metric)
Datasheet
APTB1615SURKCGKC-F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd Green, 80mcd Red
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.50mm
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.95V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 570nm Green, 630nm Red
Wavelength - Peak 574nm Green, 645nm Red
Package / Case 0606 (1616 Metric)
Supplier Device Package Chip LED
Dimension 1.60mm L x 1.50mm W
Height (Max) 0.70mm
Base Product Number APTB1615
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1653-6,APTB1615SURKCGKC-F01-ND,754-1653-2,754-1653-1
Standard Package 2,000
Win Source Part Number 1045611-APTB1615SURKCGKC-F01
Ultra Librarian 3D Model Ultra Librarian APTB1615SURKCGKC-F01 CAD Model

Description

The Kingbright APTB1615SURKCGKC-F01 is an SMD LED indication component that comes in a tape and reel package.

  • Viewing Angle: 120°
  • Millicandela Rating: 50mcd Green, 80mcd Red
  • Voltage Forward (Vf): 2.1V Green, 1.95V Red
  • Current Test: 20mA Green, 20mA Red
  • Wavelength - Dominant: 570nm Green, 630nm Red
  • Wavelength - Peak: 574nm Green, 645nm Red
  • Height: 0.70mm
  • Package/Case: 0606 (1616 Metric)
  • Supplier Device Package: chip LED
  • Lens Style: rectangle with a flat top
  • Lens Size: 1.20mm x 1.50mm
  • Alternative Parts (Cross-Reference): APA3010SURCK-GX, APG1608SURKC/T, APTB1612SURKCGKC-F01, SML-LX1206SIC-TR, SML-LX0402SIC-TR, and LG T676-P2R1-24-Z
