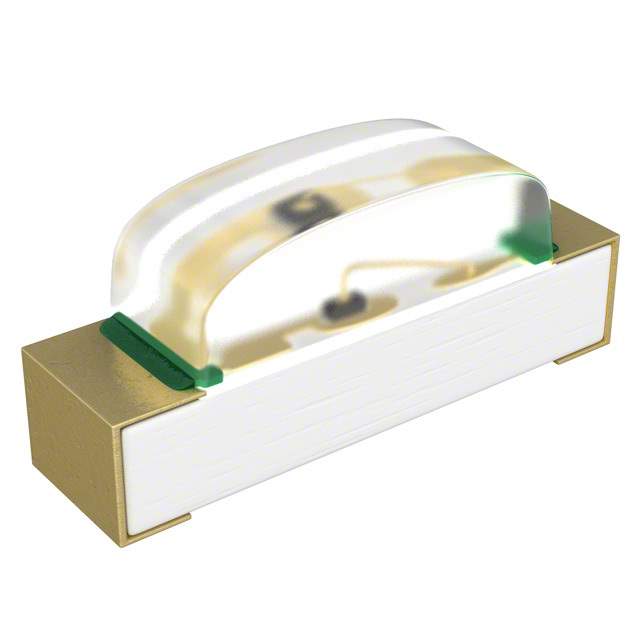

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 90mcd
Lens Style Rectangle with Domed Top
Lens Size 1.20mm x 0.60mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 155°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 605nm
Wavelength - Peak 609nm
Package / Case 2-SMD, No Lead
Supplier Device Package Chip LED
Dimension 1.60mm L x 1.00mm W
Height (Max) 0.60mm
Base Product Number HSML-C120
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-3153-6,HSML-C120-ND,516-3153-1,516-3153-2
Standard Package 4,000
Win Source Part Number 1133896-HSML-C120
Ultra Librarian 3D Model Ultra Librarian HSML-C120 CAD Model

Description

The electronic component with Win Source Part Number 1133896-HSML-C120 is an LED indication component with a dominant wavelength of 605nm and a peak wavelength of 609nm. The component has a standard package of 4,000 and is suitable for surface mount, right-angle mounting. The product specifications include the manufacturer as Broadcom Limited.

  • Manufacturer: Broadcom Limited
  • Dominant Wavelength: 605nm
  • Peak Wavelength: 609nm
  • Mounting Type: Surface Mount, Right Angle
  • Standard Package: 4,000
