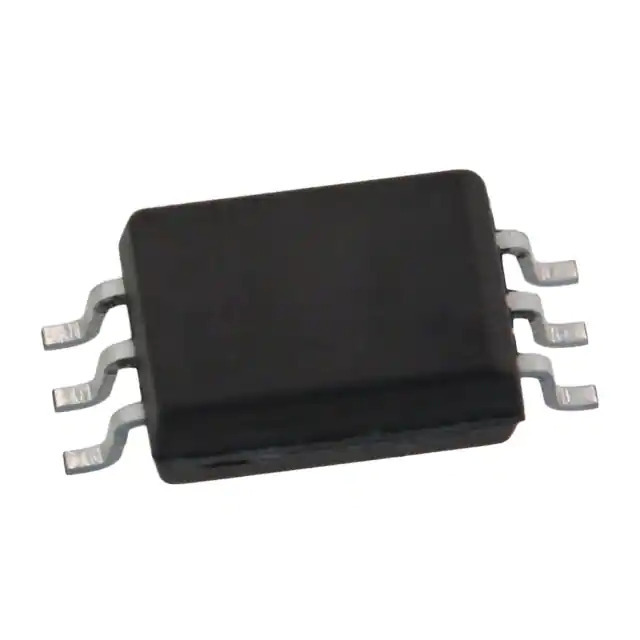

ACPL-W480-060E

Name: ACPL-W480-060E
Brand: Broadcom Limited
SKU: 1377704
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ACPL-W480-060E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5KV PUSH PULL 6SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Logic Output Optoisolators
Mfr	Broadcom Limited
Series	-
Package	Tube
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	25 mA
Data Rate	-
Propagation Delay tpLH / tpHL (Max)	350ns, 350ns
Rise / Fall Time (Typ)	16ns, 20ns
Voltage - Forward (Vf) (Typ)	1.7V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	4.5V ~ 20V
Temperature Range - Operating	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO Stretched
Base Product Number	ACPL-W480
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1377704-ACPL-W480-060E
Ultra Librarian 3D Model	Ultra Librarian ACPL-W480-060E CAD Model

Description

The ACPL-W480-060E is a high-quality logic output optoisolator component manufactured by Broadcom Limited.

Category: Isolators - Optoisolators - Logic Output Optoisolators
Package: 6-SOIC (0.268", 6.80mm Width)
Mounting Type: surface mount
Voltage Supply Range: 4.5V to 20V
Output Type: push-pull, totem pole
Forward Voltage: 1.7V
Current Output Per Channel: 25mA
Voltage Isolation: 5000Vrms
Rise/Fall Time: 16ns/20ns
