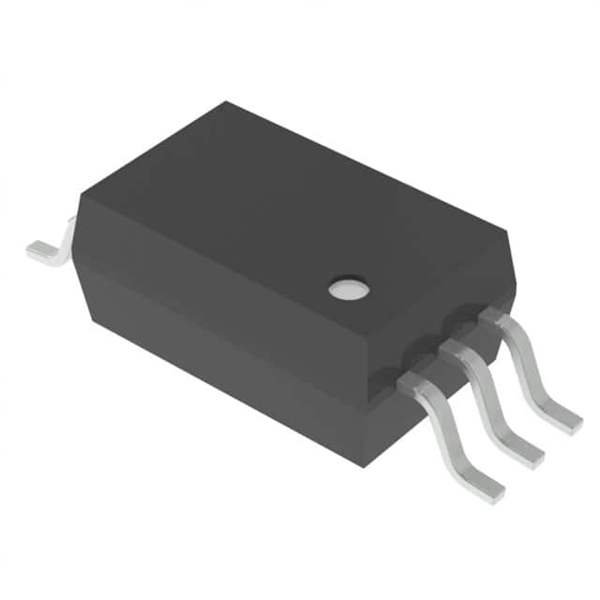

TLP5701(D4-TP,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP5701(D4-TP,E

Part No TLP5701(D4-TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description X36 PB-F DRIVER COUPLER 0.6A SO6 / Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel (TR)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 600 mA
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Rise / Fall Time (Typ) 50ns, 50ns
Voltage - Forward (Vf) (Typ) 1.57V
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 10V ~ 30V
Temperature Range - Operating -40°C ~ 110°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Base Product Number TLP5701
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP5701(D4-TPE
Standard Package 1,500
Win Source Part Number 1178520-TLP5701(D4-TP,E
Ultra Librarian 3D Model Ultra Librarian TLP5701(D4-TP,E CAD Model

Description

The Toshiba Optoisolator is a logic output device that provides galvanic isolation between the input and output circuits.

  • Output Type: Push-Pull, Totem Pole
  • Data Rate: Up to 500ns
  • Common Mode Transient Immunity: 20kV/μs
  • Voltage Isolation: 5000Vrms
  • Package: 6-SOIC
  • Manufacturer: Toshiba
