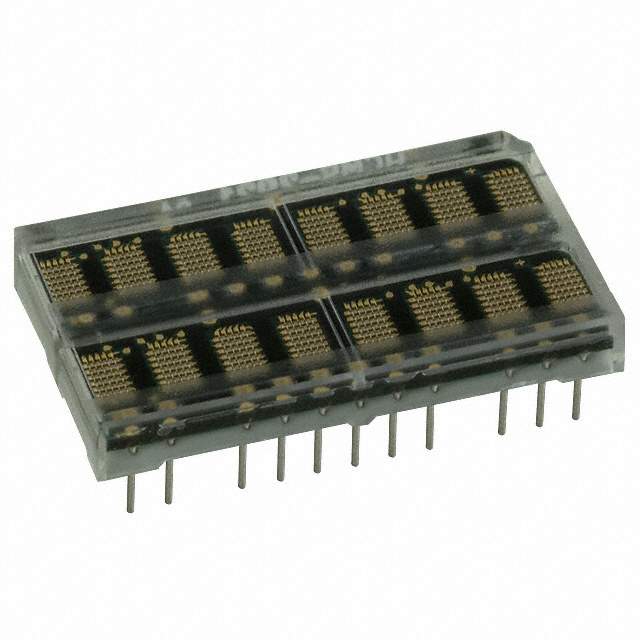

HCMS-2922 Real Image
Same model may have multiple batches, images only for reference.

HCMS-2922

Part No HCMS-2922
Manufacturer Broadcom Limited
Catalog Display Modules - LED Dot Matrix and Cluster
Description LED DISPL 5X7 2X8CHAR 3.8MM HER / Dot Matrix Display Module 5 x 7 Red Serial 1.40" L x 0.78" W x 0.20" H (35.56mm x 19.81mm x 5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Dot Matrix and Cluster
Mfr Broadcom Limited
Series HCMS-29xx
Package Tube
Millicandela Rating 64µcd
Dimension 1.40" L x 0.78" W x 0.20" H (35.56mm x 19.81mm x 5.08mm)
Color Red
Configuration 5 x 7
Interface Serial
Base Product Number HCMS-2922
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Names 516-1177-5,516-1177-5-NDR
Standard Package 10
Win Source Part Number 1010160-HCMS-2922
Ultra Librarian 3D Model Ultra Librarian HCMS-2922 CAD Model

Description

The HCMS-2922 is a red LED dot matrix and cluster display module from Broadcom Limited.

  • Configuration: 5 x 7
  • Millicandela rating: 64μcd
  • Package: tube
  • Interface: serial
  • Dimension: 1.40" L x 0.78" W x 0.20" H (35.56mm x 19.81mm x 5.08mm)
