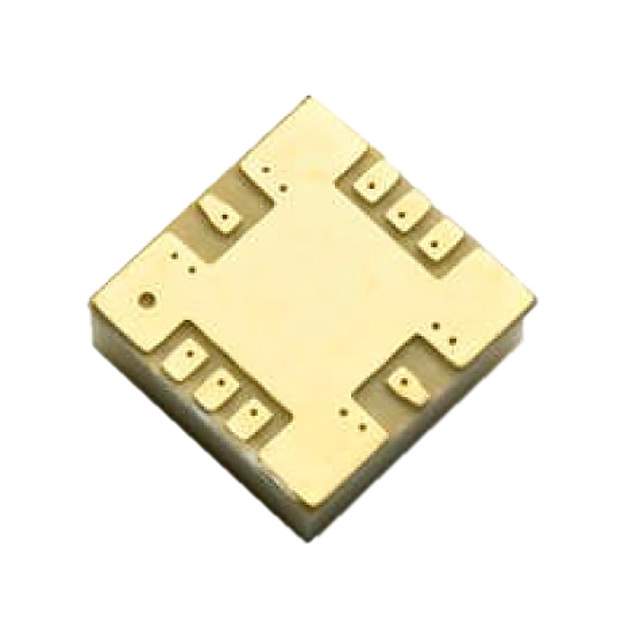

AMMP-5618-TR2 Real Image
Same model may have multiple batches, images only for reference.

AMMP-5618-TR2

Part No AMMP-5618-TR2
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC RF AMP ISM 6GHZ-20GHZ 8SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2001181-AMMP-5618-TR2
Win Source Part Number Cross
Manufacturer Broadcom Limited
Category RF and Wireless RF Amplifiers
Package Tape & Reel (TR)
Product Status Obsolete
Frequency 6GHz ~ 20GHz
P1dB 19dBm
Noise Figure 4.4dB
RF Type ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT
Current - Supply 107mA ~ 140mA
Ultra Librarian 3D Model Ultra Librarian AMMP-5618-TR2 CAD Model

Description

The Broadcom Limited XLP764B1IFSB00120X is an obsolete product that comes in a Tape & Reel (TR) package. It is a part of the RF and Wireless RF Amplifiers category and is suitable for use in ISM, MMDS, WLL, 802.16/WiMAX, DBS, and VSAT RF types. This product has a frequency range of 6GHz to 20GHz, a noise figure of 4.4dB, and a P1dB of 19dBm. It has a current supply of 107mA to 140mA and an alternative part cross-reference.
