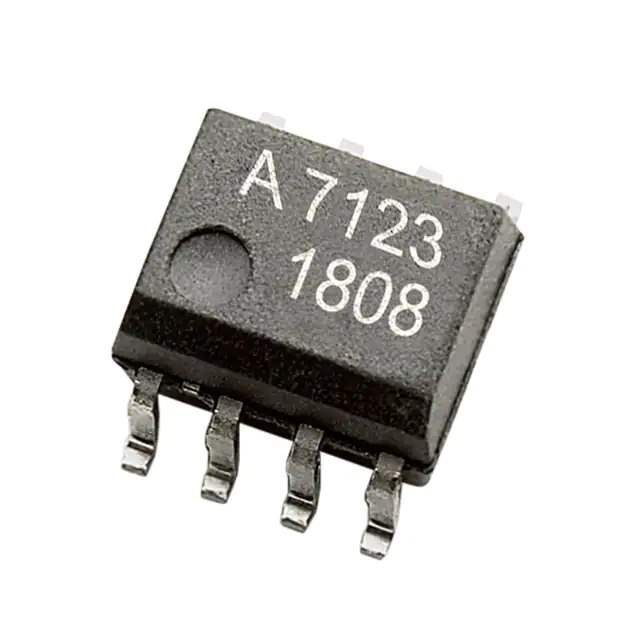

ACHS-7123-000E

Part No ACHS-7123-000E
Manufacturer Broadcom Limited
Catalog Current Transducers
Description HALL EFFECT IC LF
Datasheet
ACHS-7123-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Broadcom Limited
Package Tube
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect
Current - Sensing 30A
Output Ratiometric, Voltage
Sensitivity 66mV/A
Frequency 80kHz
Linearity ±0.11%
Voltage - Supply 4.5V ~ 5.5V
Response Time 4µs
Current - Supply (Max) 15mA
Temperature Range - Operating -40°C ~ 110°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number ACHS-7123
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 844998-ACHS-7123-000E
Ultra Librarian 3D Model Ultra Librarian ACHS-7123-000E CAD Model

Description

The ACHS-7123-000E is a current sensor designed for various applications. Manufactured by Broadcom Limited.

  • Series: ACHS-7123
  • Package: Tube
  • Standard Package: 100 pieces
  • Response Time: 4 microseconds
  • Frequency: 80kHz
  • Output: Ratiometric and Voltage-based
  • Polarization: Bidirectional
  • Maximum Current Supply: 15mA
  • Sensitivity: 66mV/A
  • Current Type: AC and DC
  • Sensor Type: Hall Effect
  • Current Sensing: 30A
  • Linearity: ±0.11 percent
  • Voltage Supply: 4.5V to 5.5V
  • Mounting: Surface Mountable
  • Package: 8-SOIC
  • Operating Temperature: -40°C to 110°C
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS Code: 8542.39.0001
  • Base Product Number: ACHS-7123
  • Product Status: Active
