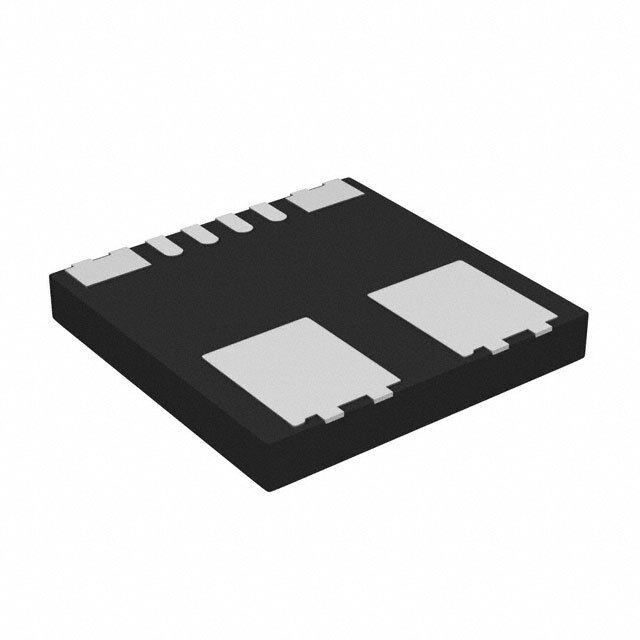

TLI4970D025T4XUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

TLI4970D025T4XUMA1

Part No TLI4970D025T4XUMA1
Manufacturer Infineon Technologies
Catalog Current Transducers
Description SENSOR CURRENT HALL 25A 8TISON / Current Sensor 25A 1 Channel Hall Effect, Differential Unidirectional 8-PowerTDFN
Datasheet
TLI4970D025T4XUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 25A
Number of Channels 1
Output SPI
Frequency DC ~ 18kHz
Linearity ±1.6%
Accuracy ±2%
Voltage - Supply 3.1V ~ 3.5V
Response Time 57µs
Current - Supply (Max) 20mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 8-PowerTDFN
Supplier Device Package PG-TISON-8-1
Base Product Number TLI4970
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-TLI4970D025T4XUMA1,TLI4970D025T4XUMA1CT,SP001323154,TLI4970D025T4XUMA1TR,TLI4970D025T4XUMA1DKR,INFINFTLI4970D025T4XUMA1
Standard Package 2,000
Win Source Part Number 1229464-TLI4970D025T4XUMA1
Ultra Librarian 3D Model Ultra Librarian TLI4970D025T4XUMA1 CAD Model

Description

The Infineon Technologies TLI4970D025T4XUMA1 is a unidirectional differential Hall effect sensor designed for AC/DC current sensing applications.

  • Current-Sensing Range: 25A
  • Response Time: 57μs
  • Linearity: ±1.6%
  • Accuracy: ±2%
  • Package: 8-PowerTDFN
  • Operating Temperature: -40°C to 85°C
  • AEC-Q100 Qualified: yes
  • Output: SPI
  • Voltage Supply: 3.1V to 3.5V
  • Packaging: tape and reel
  • Standard Package: 2,000 units
