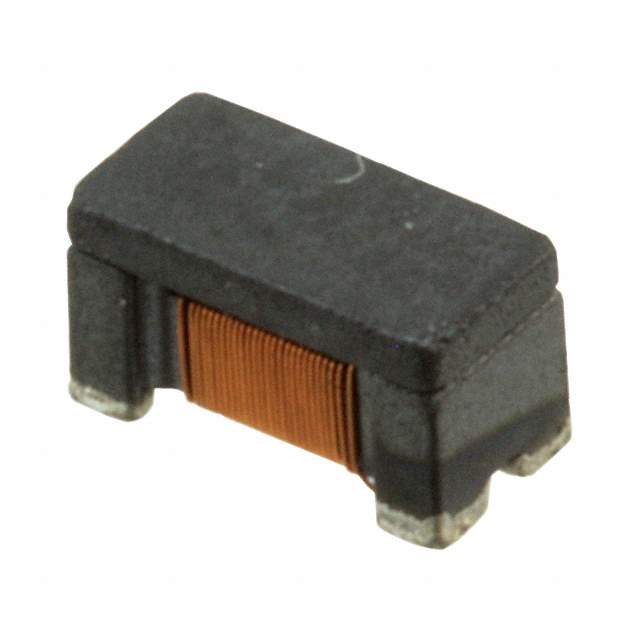

SRF3216-102Y Real Image
Same model may have multiple batches, images only for reference.

SRF3216-102Y

Part No SRF3216-102Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Common Mode Chip Inductors | CMC 230MA 2LN 1 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Packaging Reel
Number of Lines 2
Impedance at Frequency 1 kOhms at 100MHz
Current Rating (Maximum) 230mA
DC Resistance (DCR) (Maximum) 1Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Parts Dimension 3.20mm x 1.60mm
Height (Maximum) 0.087" (2.20mm)
Manufacturer Package Horizontal, 4 PC Pad
Family Part Number SRF3216
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1258760-SRF3216-102Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SRF3216-102Y CAD Model

Description

The Bourns Inc. 1258760-SRF3216-102Y is a surface-mount device (SMD) filter manufactured by Bourns Inc.

  • Package: Horizontal, 4 PC pad
  • Popularity: Medium
  • Maximum Height: 0.087" (2.20mm)
  • Maximum Current Rating: 230mA
  • DC Resistance (DCR): 1Ohm
  • Impedance @ 100MHz: 1 kOhms
